Description
Enjoy year-round comfort with this 35000 BTU 4-zone mini split air conditioner, designed to deliver efficient cooling and heating for multiple rooms. This quad-zone energy-efficient inverter split AC system is ENERGY STAR certified and uses R454B refrigerant, providing powerful performance while reducing energy consumption. Built for demanding environments, the outdoor unit features chassis electrical heating, allowing it to cool effectively even at 131℉ and provide reliable heating in temperatures as low as -13℉. For added convenience, the multi-zone ductless split AC system includes built-in WiFi, enabling smart control through a mobile app, the included remote, or voice commands via Alexa and Google Assistant. With 7 operating modes and 8 fan speeds, you can easily customize your indoor climate to match seasonal needs and personal preferences. Additional features such as a 24-hour timer, 4D airflow, quiet operation, and self-cleaning function further enhance comfort and ease of use, making this mini split system a reliable solution for modern living.
Please note: Installation of this mini split AC unit should only be performed by a licensed HVAC installer.
Features

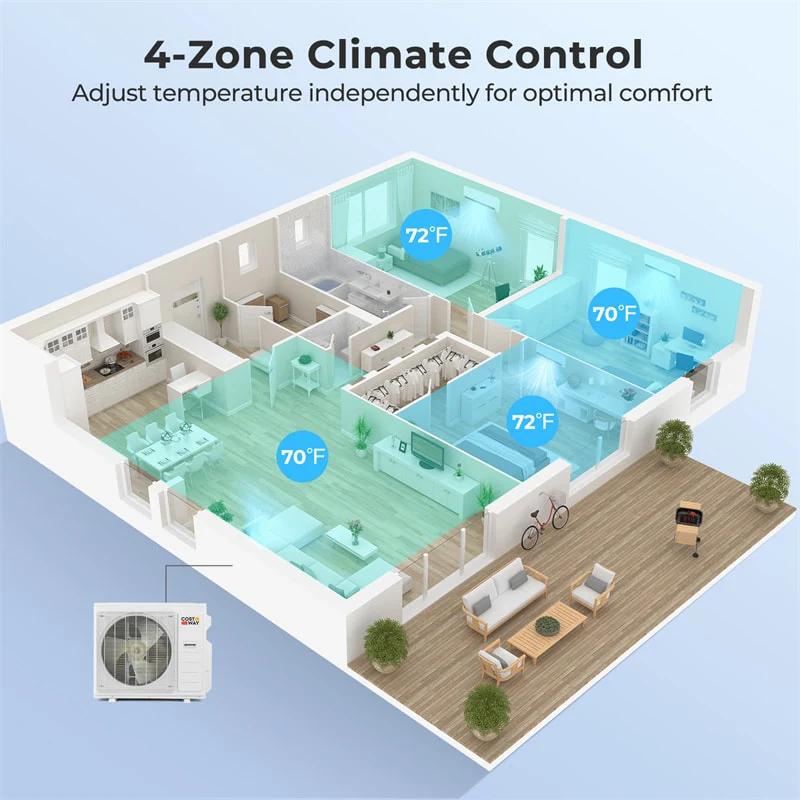

- Quad 4-Zone Climate Control: This 35000 BTU ductless mini split air conditioner supports 4 zones, delivering customized comfort for multiple rooms. The multi-zone design allows independent temperature control for optimal comfort, while 4D auto swing ensures even airflow distribution throughout each space.

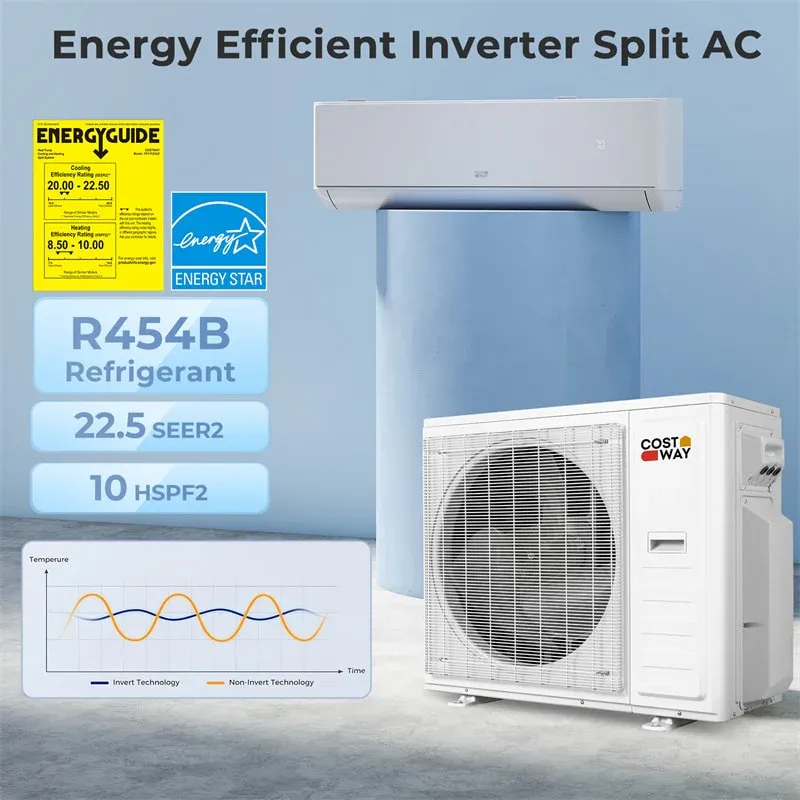

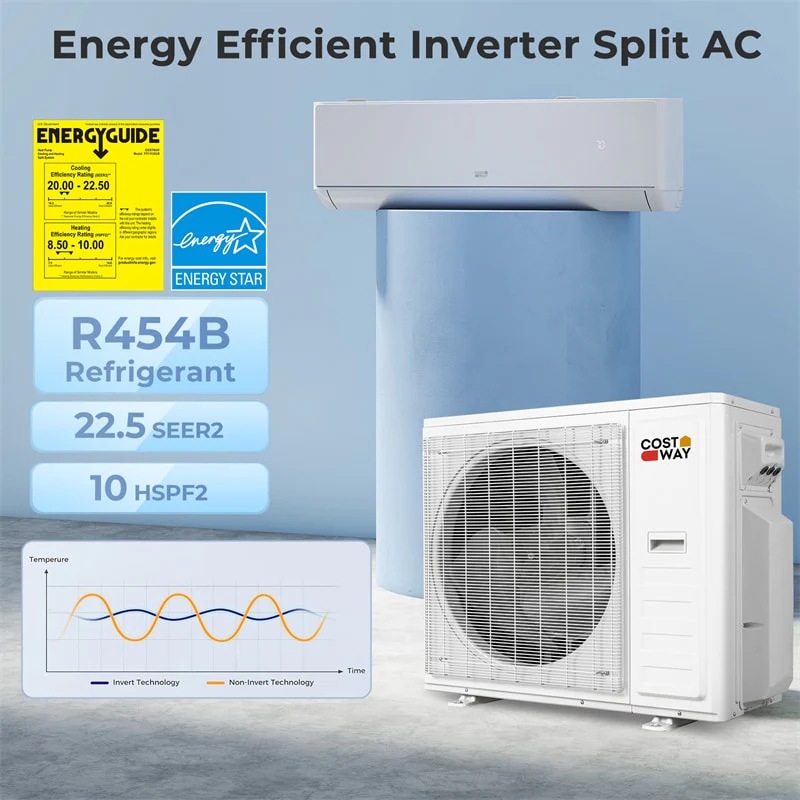

- Energy-Efficient Performance: Rated up to 22.5 SEER2, this ENERGY STAR certified ductless mini split AC uses R454B refrigerant for efficient heating and cooling with a lower global warming potential. Advanced inverter technology helps reduce energy waste and maintain consistent temperatures.
- Smart & Flexible Control: This WiFi-enabled mini split AC and heating system works with Alexa and Google Assistant and includes a convenient remote control for quick adjustments. It offers 7 modes (auto, cool, heat, dry, fan, ECO, sleep), 8 fan speeds (auto, mute, low, low-mid, mid, mid-high, high, turbo), a 24-hour timer, and a child lock for everyday convenience.

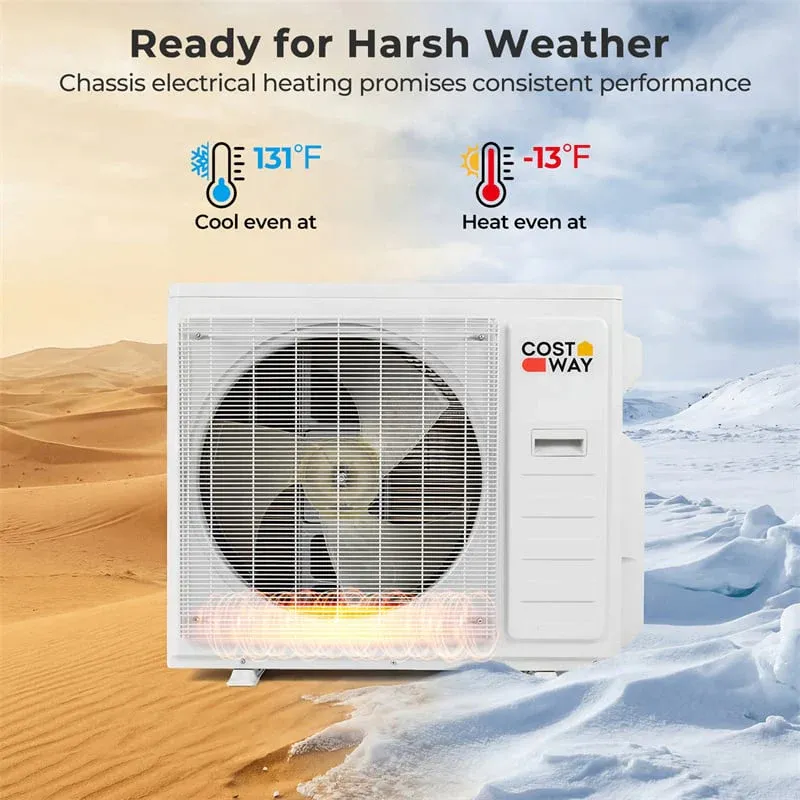

- Built for Harsh Weather: Equipped with a chassis electrical heating system, the outdoor unit delivers reliable performance in extreme conditions, cooling in temperatures up to 55℃/131℉ and heating down to -25℃/-13℉.

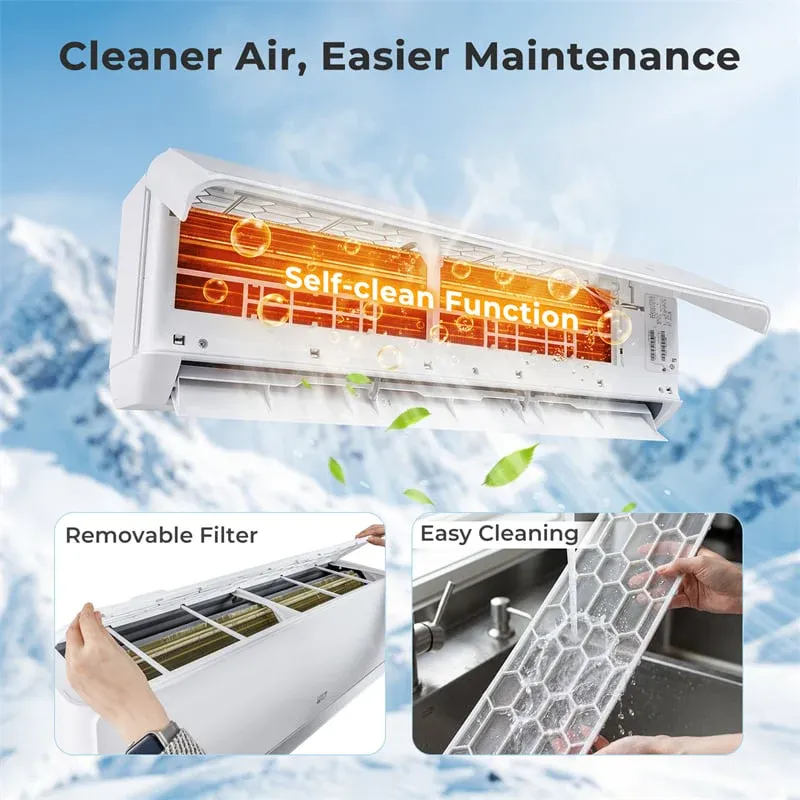

- Quiet Operation & Easy Maintenance: Operating at sound levels as low as 30 dB, this multi-zone split air conditioner & heat pump system ensures a quiet environment for sleep or work. The self-cleaning function and washable filter promote cleaner air and simplify maintenance. Note: Professional installation is recommended.
Specifications
- Color of Indoor Unit: White
- Color of Outdoor Unit: White
- Material: Cold-rolled Steel Sheet, Copper, Aluminum

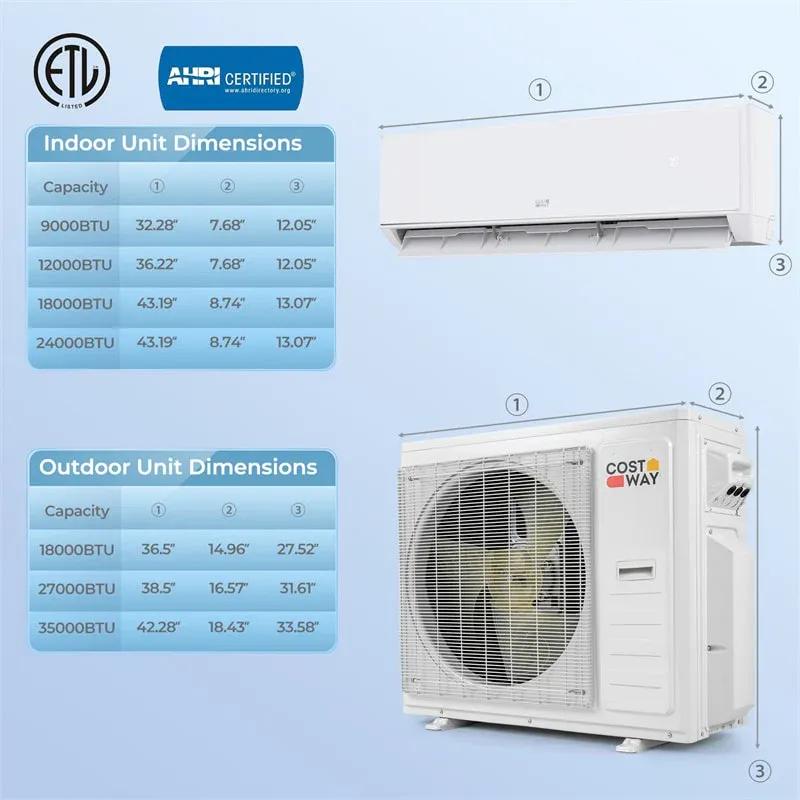

- Indoor Unit Dimensions:
9K: 32.28” x 7.68” x 12.05” (L x W x H)
12K: 36.22” x 7.68” x 12.05” (L x W x H)
18K: 43.19″ x 8.74″ x 13.07″ (L x W x H)
24K: 43.19″ x 8.74″ x 13.07″ (L x W x H) - Outdoor Unit Dimensions: 42.28″ x 18.43″ x 33.58″ (L x W x H)
- Multi-Zone Combination: 4
- Voltage: 208-230V
- Frequency: 60Hz
- Temperature Setting Range: 60℉~88℉
- Refrigerant: R454B
- Indoor Unit Noise Level: 30 dB
- Max Remote Control Distance: 39.5 ft
- Coverage Area:
9k: 450 Sq. Ft
12k: 750 Sq. Ft
18k: 1250 Sq. Ft
24k: 1500 Sq. Ft - Dehumidification Capacity:
9k: 55.8 Pints/Day
12k: 81.2 Pints/Day
18k: 111.6 Pints/Day
24k: 131.9 Pints/Day - Maximum Air Flow Volume:
9k: 326 CFM
12k: 500 CFM
18k: 735 CFM
24k: 735 CFM - SEER2: 22.5
- HSPF2: 10
- Diameter of Liquid Pipe: 1/4″
- Diameter of Gas Pipe:
9k: 3/8″
12k: 3/8″
18k: 1/2″
24k: 5/8″ - Outdoor Unit Net Weight: 145.5 lbs
- Net Weight of Indoor Unit
9k: 20.7 lbs
12k: 24.3 lbs
18k: 30.9 lbs
24k: 30.9 lbs

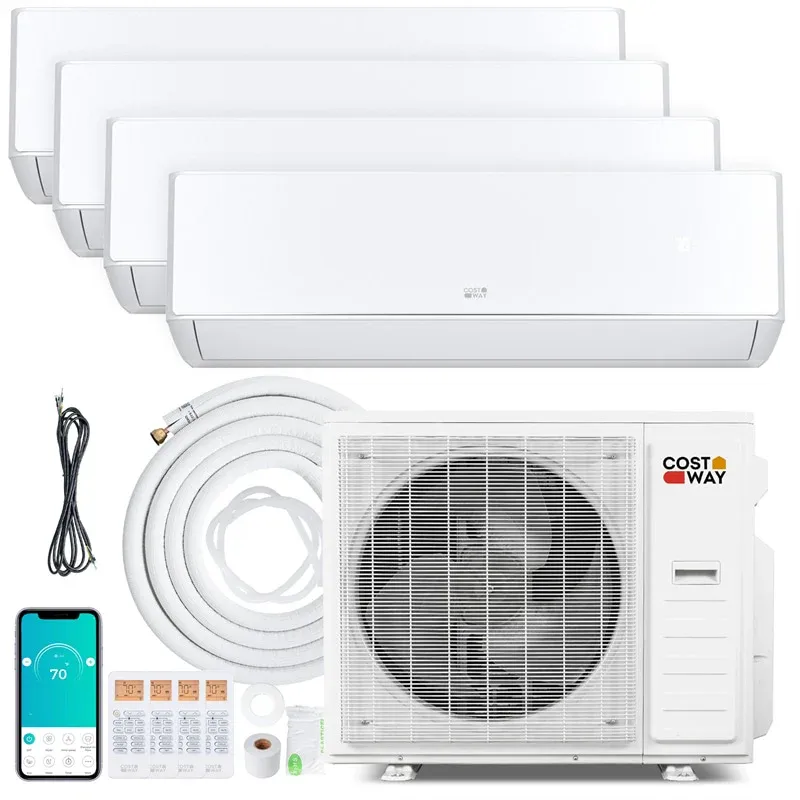

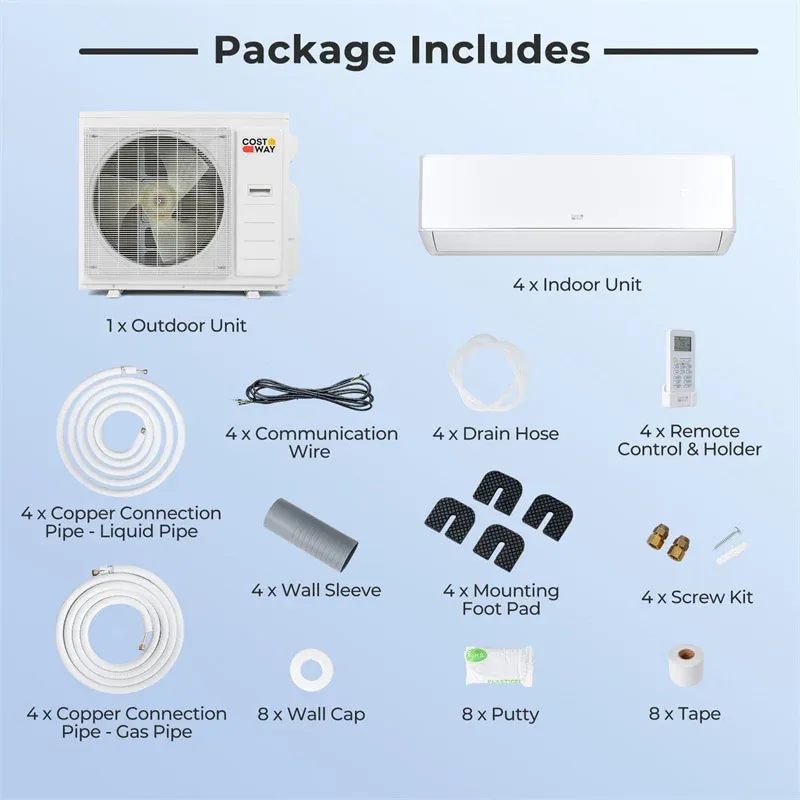

Package Includes
- 1 x Outdoor Unit
- 4 x Indoor Unit
- 4 x Copper Connection Pipe – Gas Pipe
- 4 x Copper Connection Pipe – Liquid Pipe
- 4 x Communication Wire
- 4 x Drain Hose
- 4 x Remote Control & Holder
- 4 x Wall Sleeve
- 8 x Wall Cap
- 8 x Tape
- 8 x Putty
- 4 x Screw Kit
- 4 x Mounting Foot Pad
- 6 x User Guide
