Description
This product has a strong power of 7.5HP with four-stroke, which enables you to drive fast and save a lot of time and energy. It also has a 180-degree steering function, which is very easy to operate. The large capacity fuel tank also reduces the number of times you have to refuel, thus increasing your efficiency. Such an energy-saving, stable, and efficient outboard engine is a good assistant for your water operation

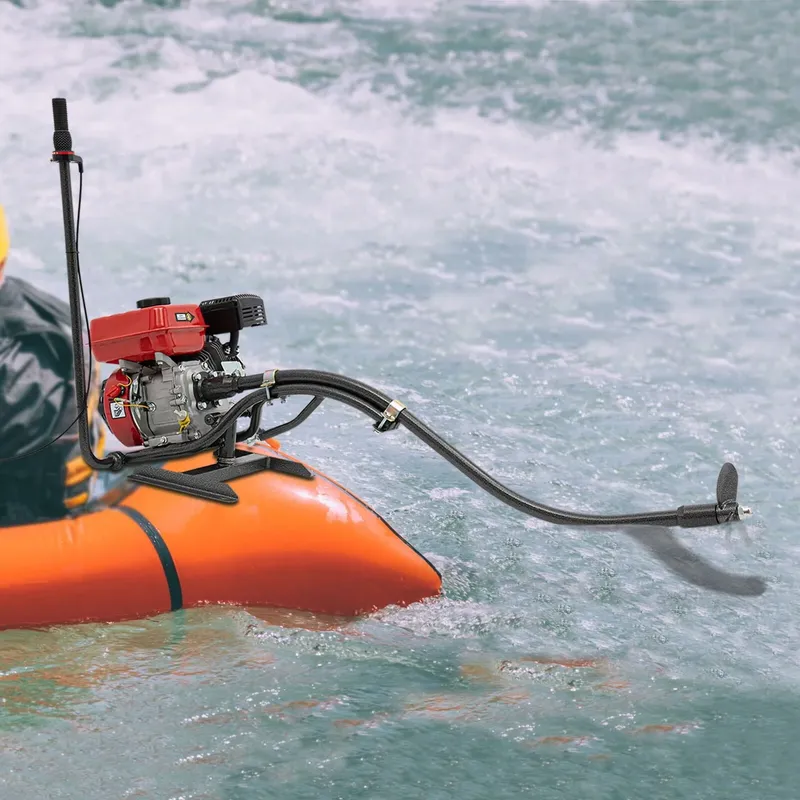

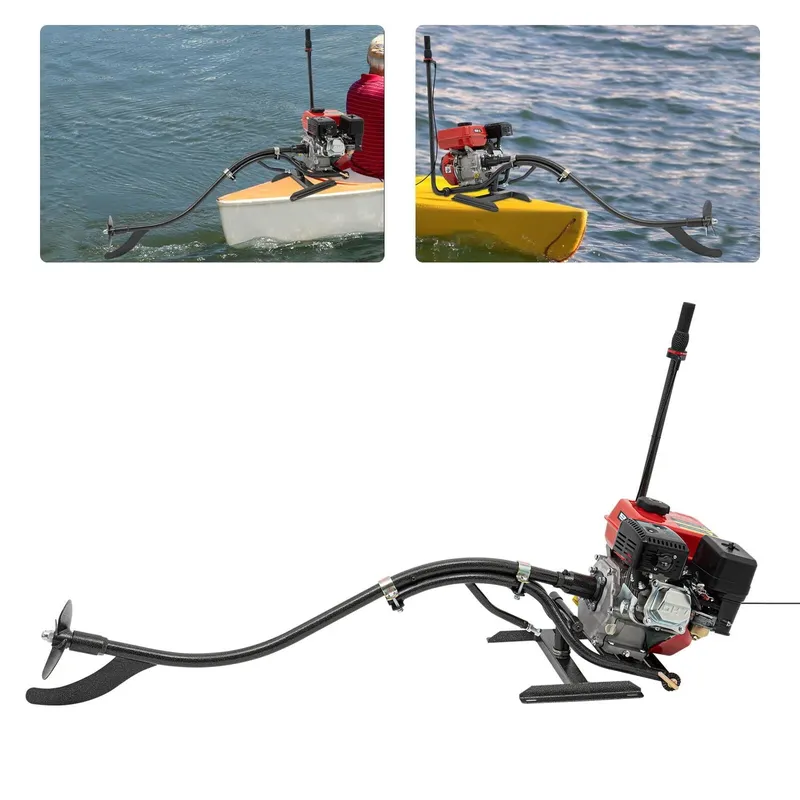

It is suitable for small boats of 9.84-19.69ft such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It applies to water operations in rivers, lakes, reservoirs, fish ponds, etc
Specification�?/p>
Color: Black and Red
Material: Aluminum and Steel
Surface Treatment: Spray Molding Process
Assembly Required: Yes

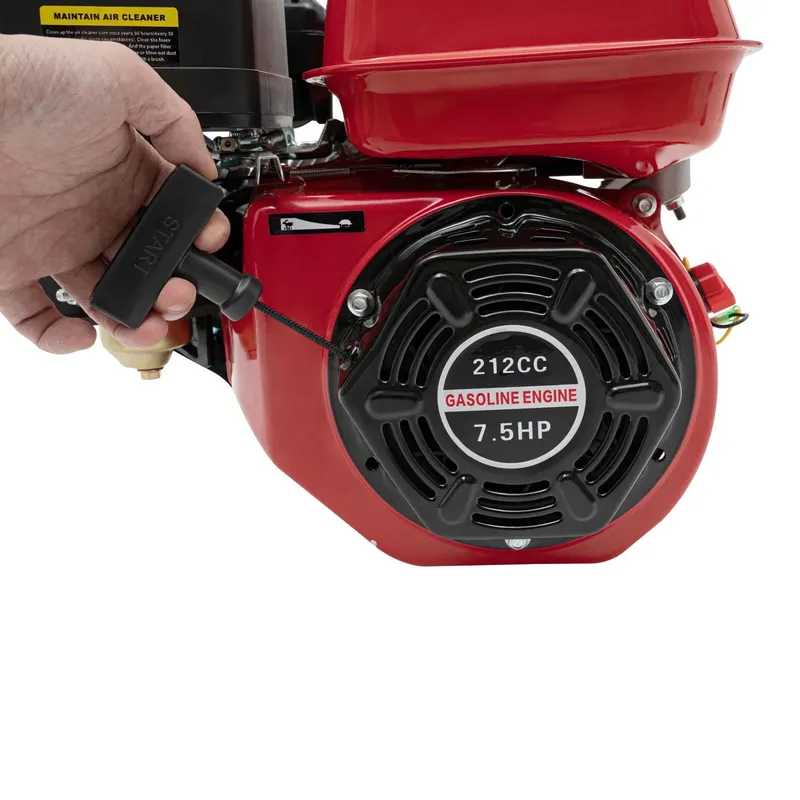

Starting Method: Manual Start
Recommended Fuel: Normal Unleaded Gasoline
Engine Type: 4 Stroke, Single Cylinder, Air-cooled
Ignition System: TCI
Power: 7.5HP
Power Type: AWT170F/P(AWT170FD/P)
Bore*Stroke: 70*55mm/2.76*2.17in
Displacement: 212cc
Max Power: 4.3kW/3600rpm
Power Rating: 4.0kW/3600rpm
Peak Torque: 9.5N·m/2500rpm
Fuel Consumption: �?95g/12.66oz/kW·h
Fuel Tank Capacity: About 3.6L/0.95gal
Oil Volume: 0.6L/0.16gal
Speed: 3600rpm
Running Time: About 3 Hours
Steering Angle: 180°
Operating Speed: �?9.5km/5.9miles/h
Applicable Boat Size: 3-6m/9.84-19.69ft

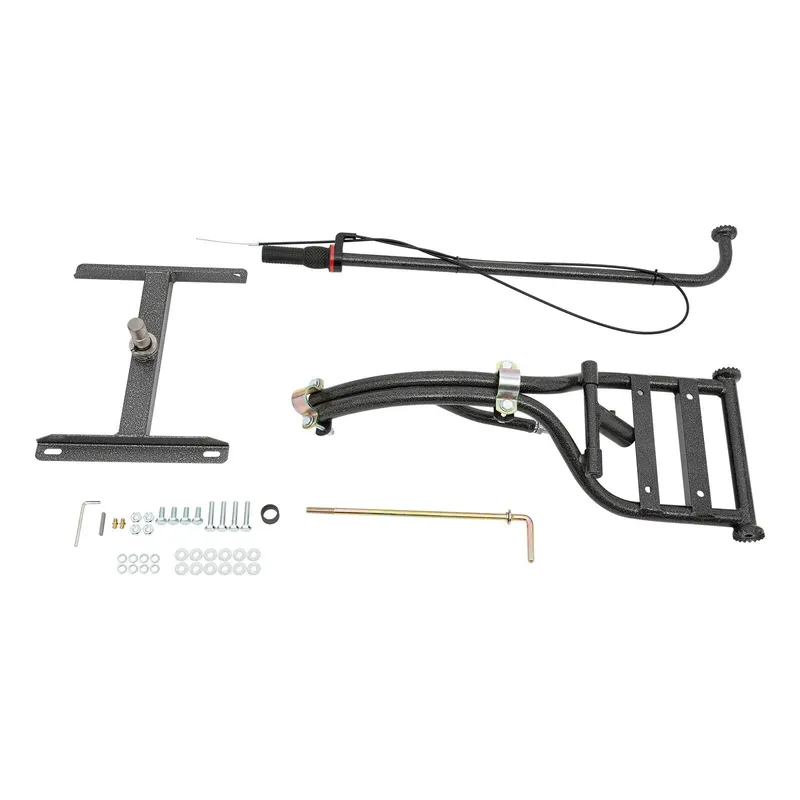

Rack:

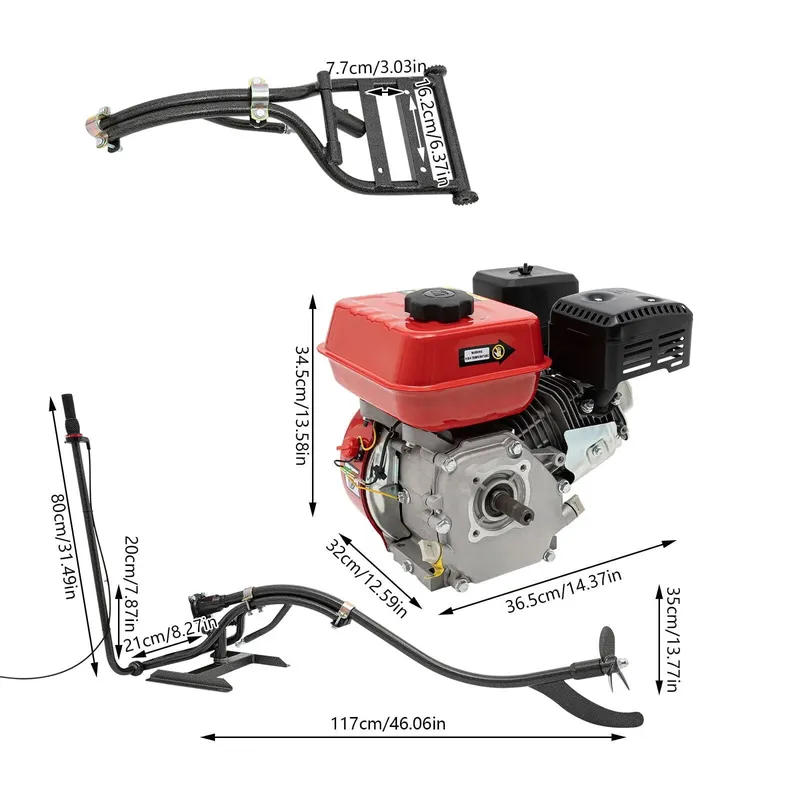

Rack Size(L&H): 101(80 21cm)*20cm/39.76(31.49 8.27)*7.87in
Net Weight: 18.5kg/40.79lbs
Gross Weight(kg): 19.6kg/43.21lbs
Package Size: 135*29*19cm/53.15*11.42*7.48in

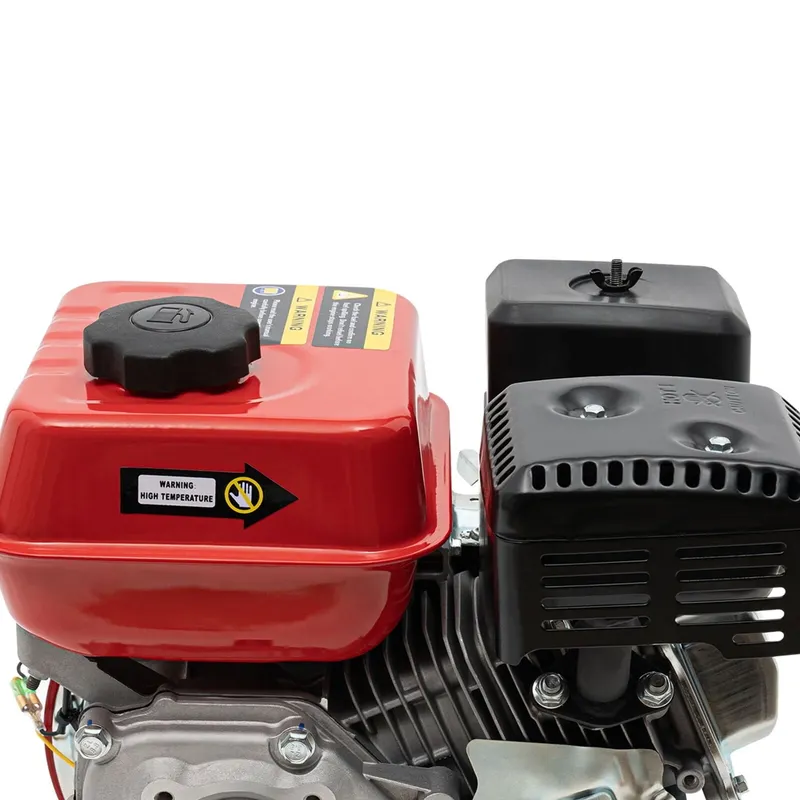

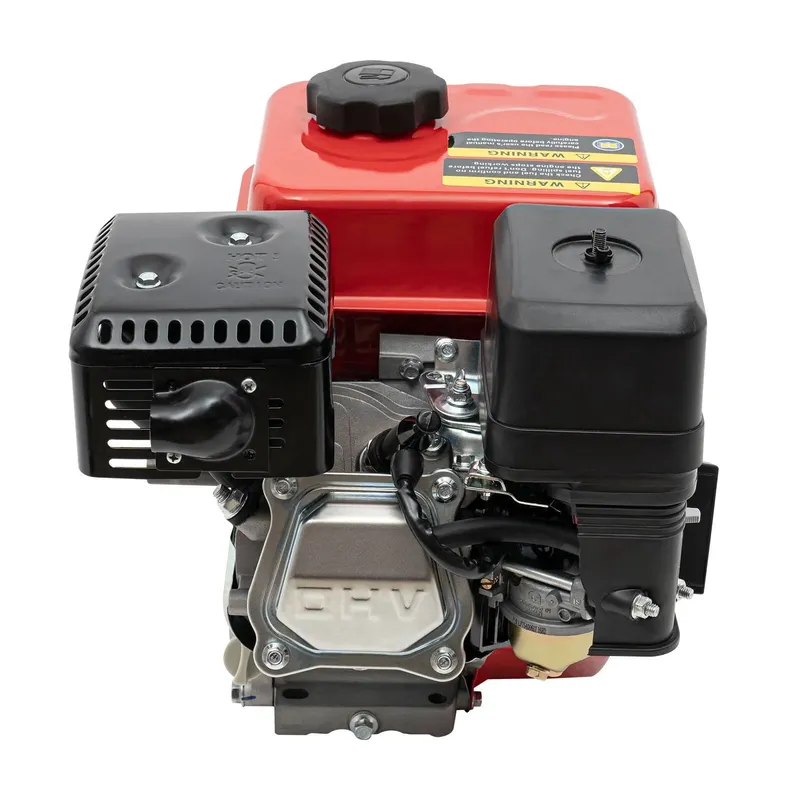

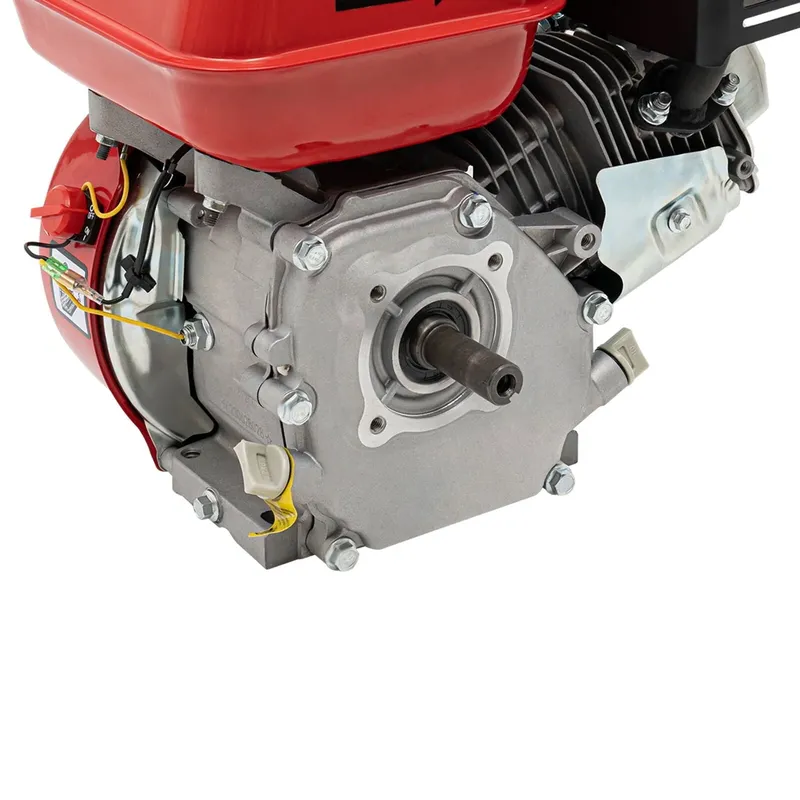

Engine:
Engine Size: 36.5*32*34.5cm/14.37*12.59*13.58in
Net Weight: 19kg/41.89lbs
Gross Weight(kg): 26.8kg/59.08lbs
Package Size: 42*47*45cm/16.54*18.5*17.72in
Package Included�?/p>

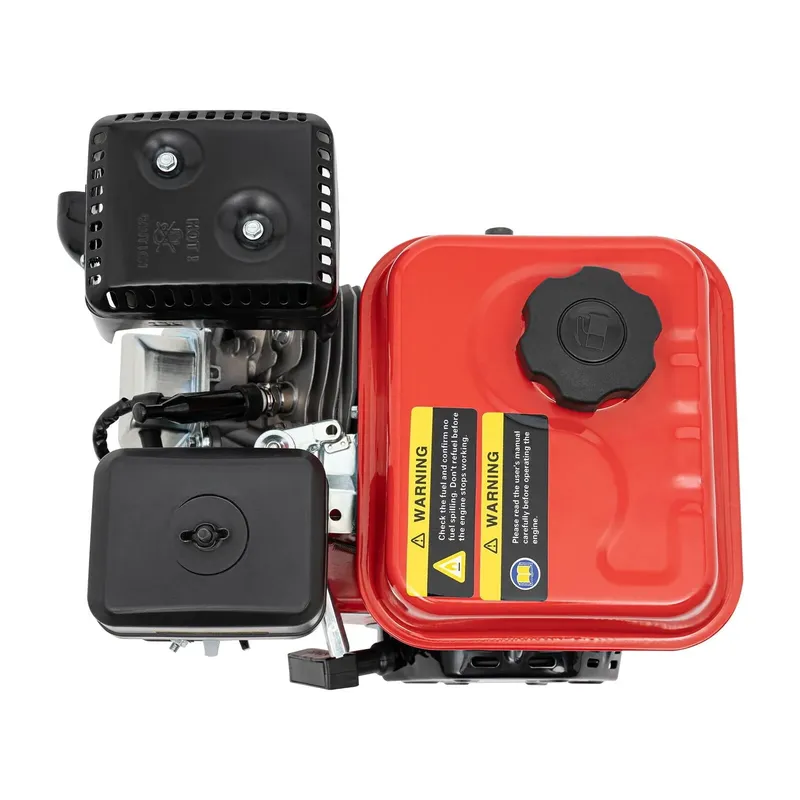

1 * Four-stroke Outboard Engine
1 * Rack
1 * English Manual
Other Accessories for Installation
