Description
Whatever you can imagine,we’ve got it for you.
Our seat its comfortable and very robust construction.
The seat requires no maintenance intervals.
Install our seat, drive off and waste no more worries.

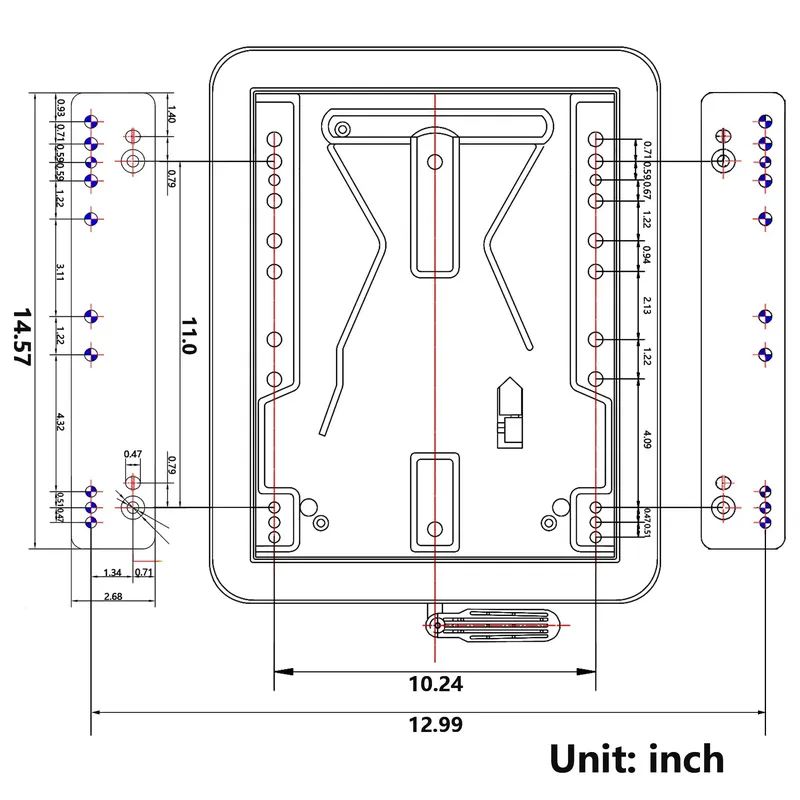

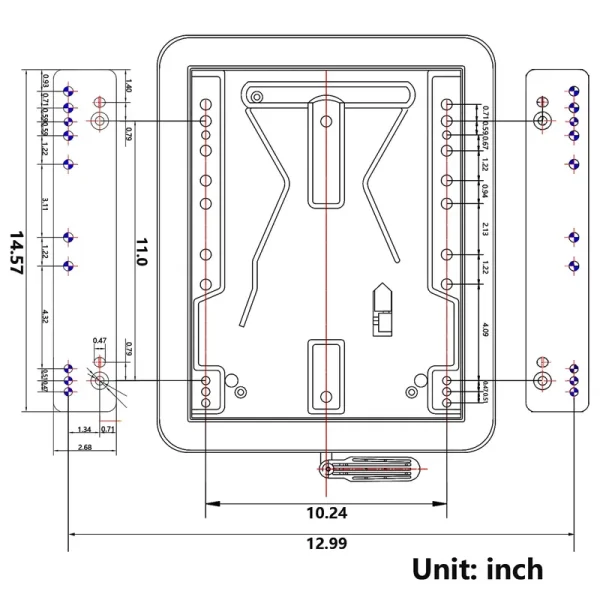

The base plate has various mounting holes:
In width (from left to right), the mounting holes have a distance of 260 mm.
Various holes are specified in depth, from 136 mm to 325 mm.
(It is also possible to drill other mounting holes.)
Technical details:
Mechanical sprung seat
Extra strong scissor suspension.
Backrest adjustable and foldable.
suspension Adjustable height to 3 different positions.
Height adjustment: 60 mm.
Height from base plate to seat cushion top edge 310 mm -370 mm
Suspension travel: 80 mm.
Weight adjustment: 50 to 130 kg.

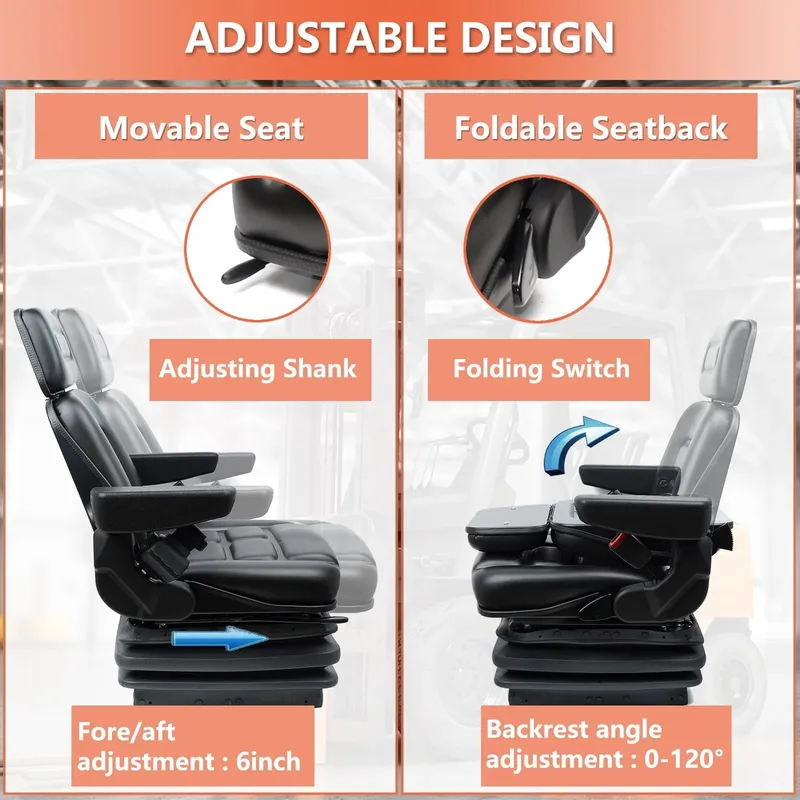

Longitudinal adjustment 176 mm,each step 16mm.
Adjustable back extension down 80°.

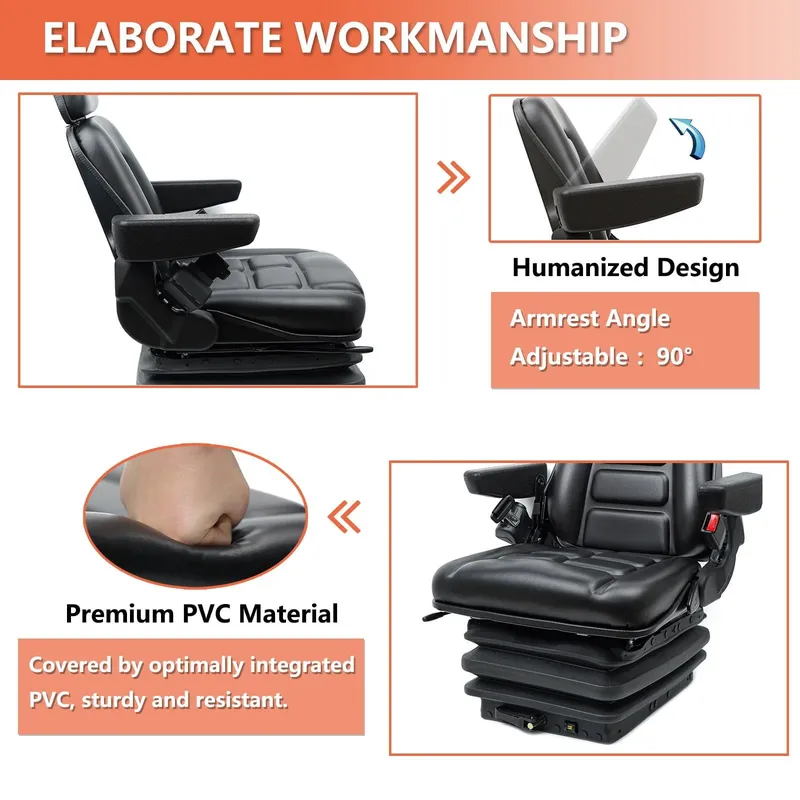

Armrests can be tilted – height adjustable and folded.
Highly durable faux leather cover.
Interchangeable covers and pads
Lap belt mounting points according to DIN standard.

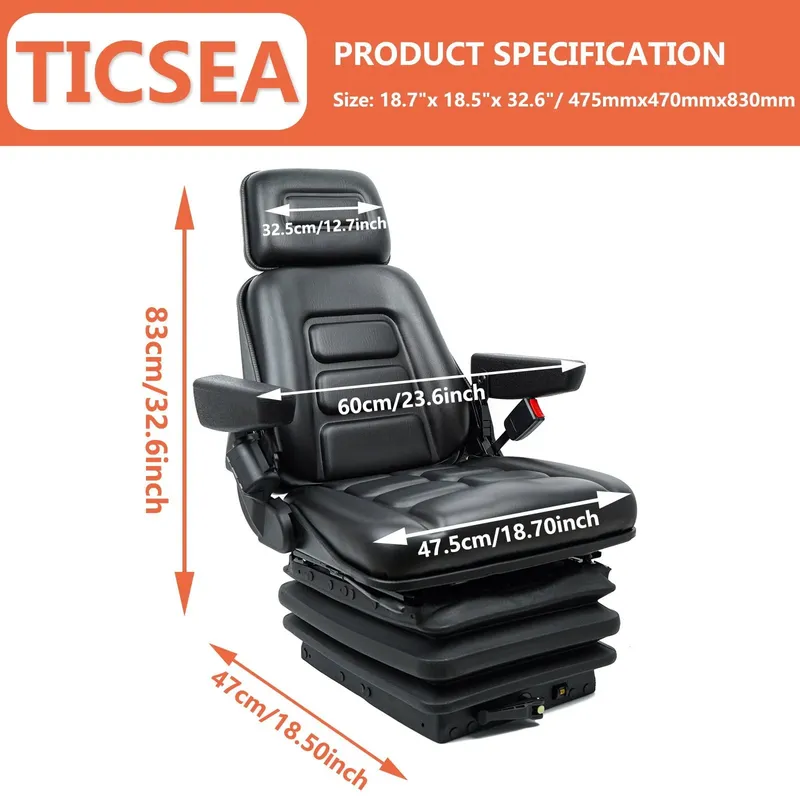

Seat pad width: 525 mm.
Extra thick padding.
Width with armrests: 615 mm.
Mechanical lumbar support.

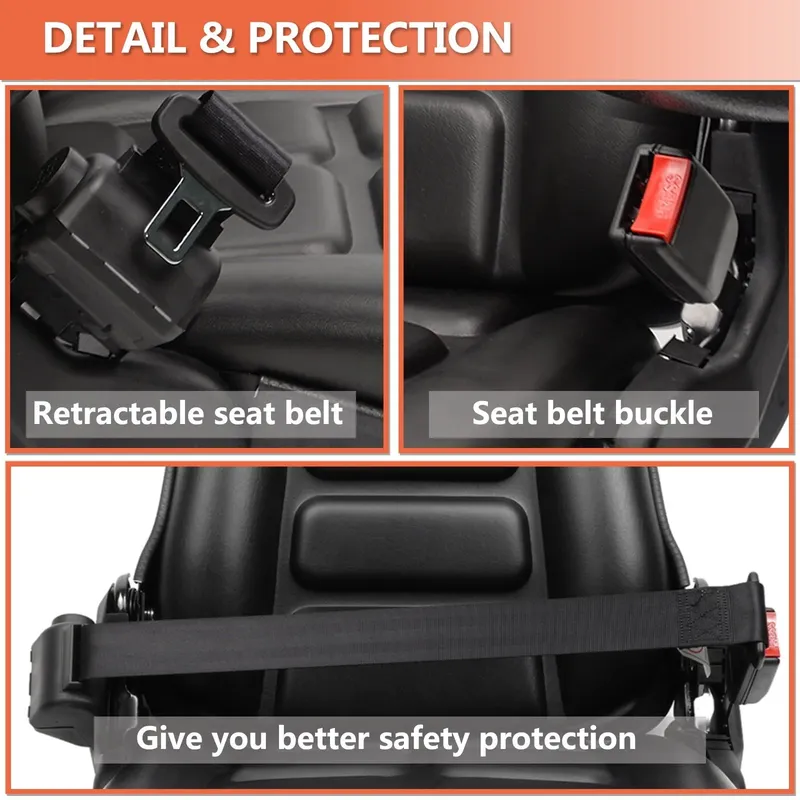

Retractable seat belt.

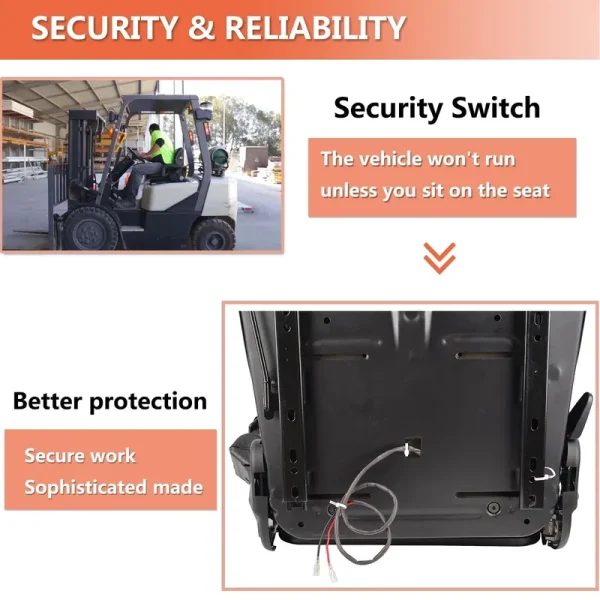

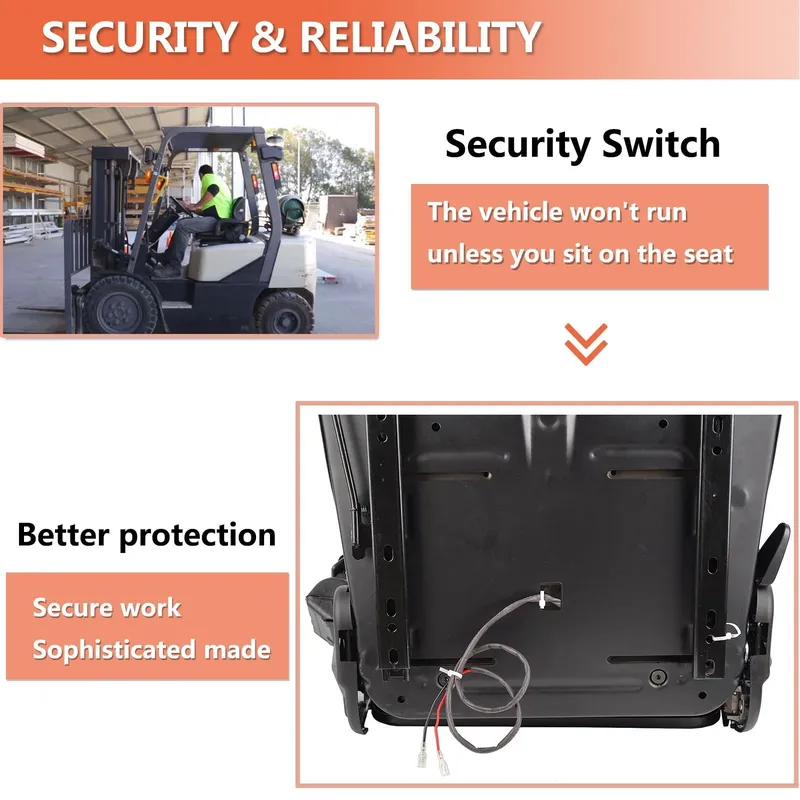

Contains Operator pressure sensor.
TICSEA has more than 20 years of seat manufacturing experience and provides solutions for global seats.Welcome to consult.24-hour online customer service, we provide 100% quality service.
Packing:
1*Seat
