Description

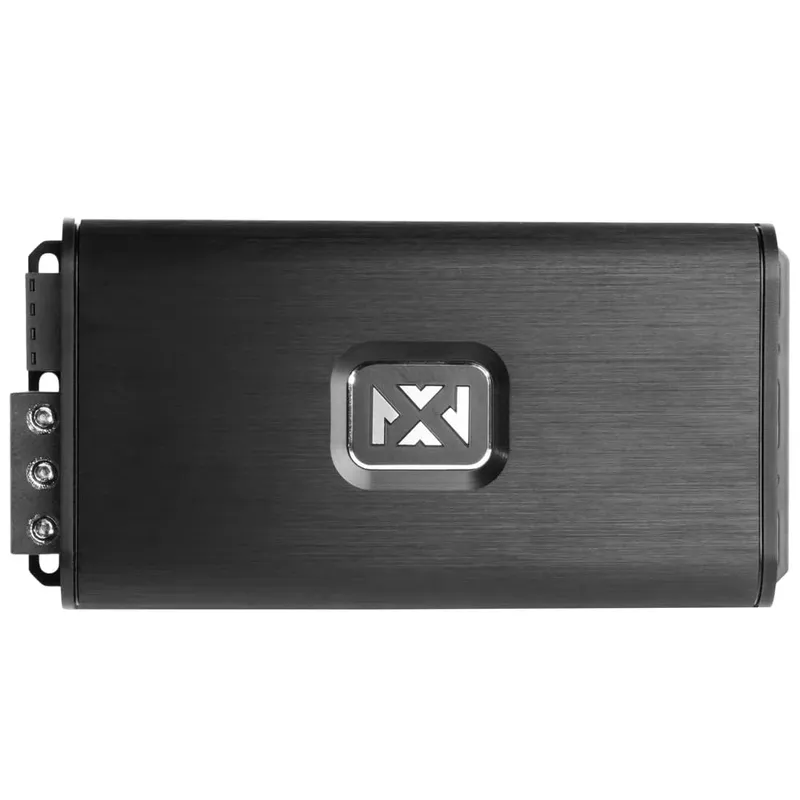

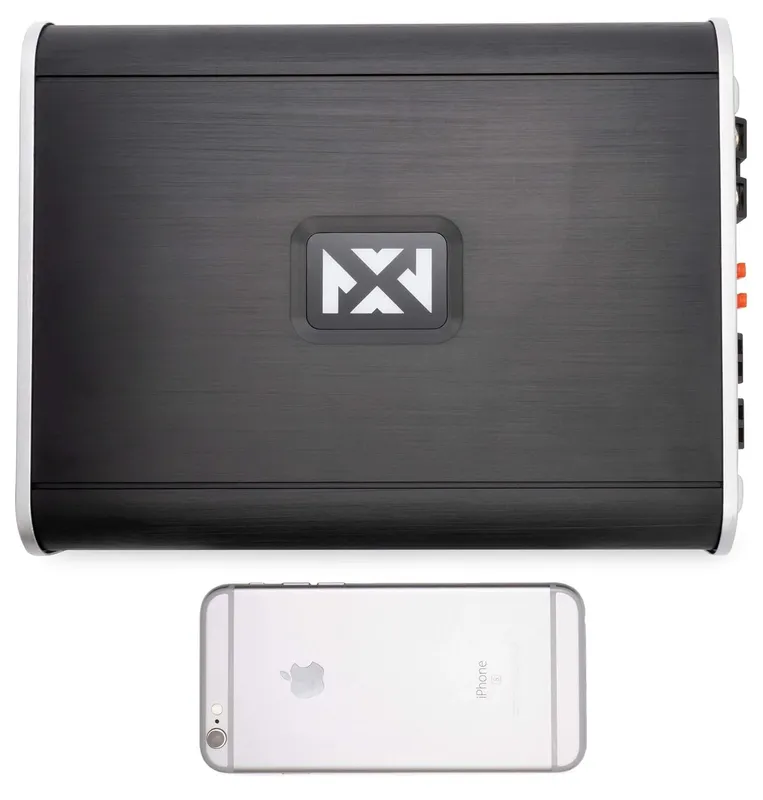

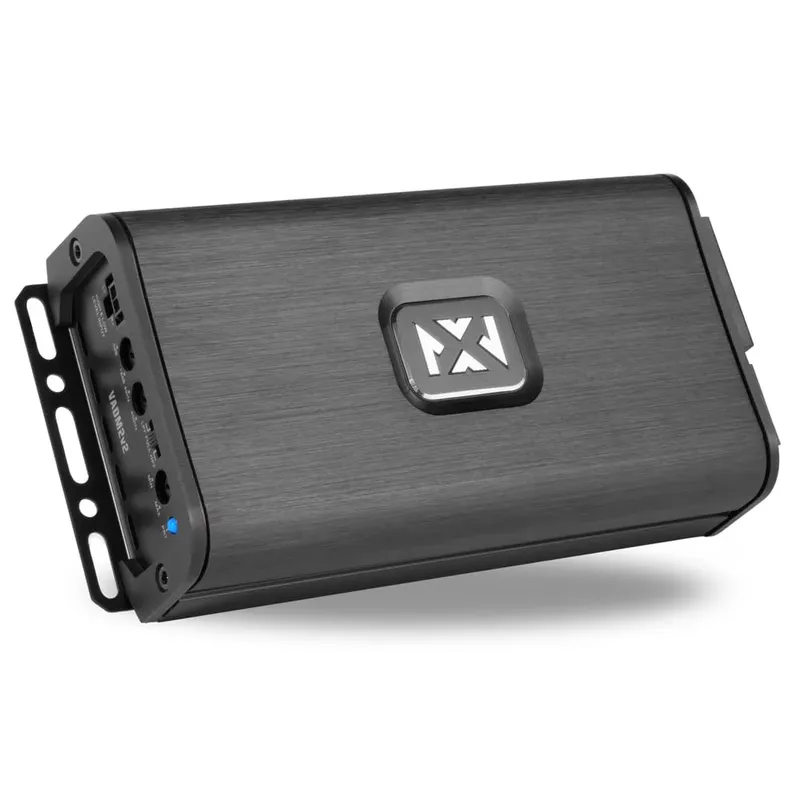

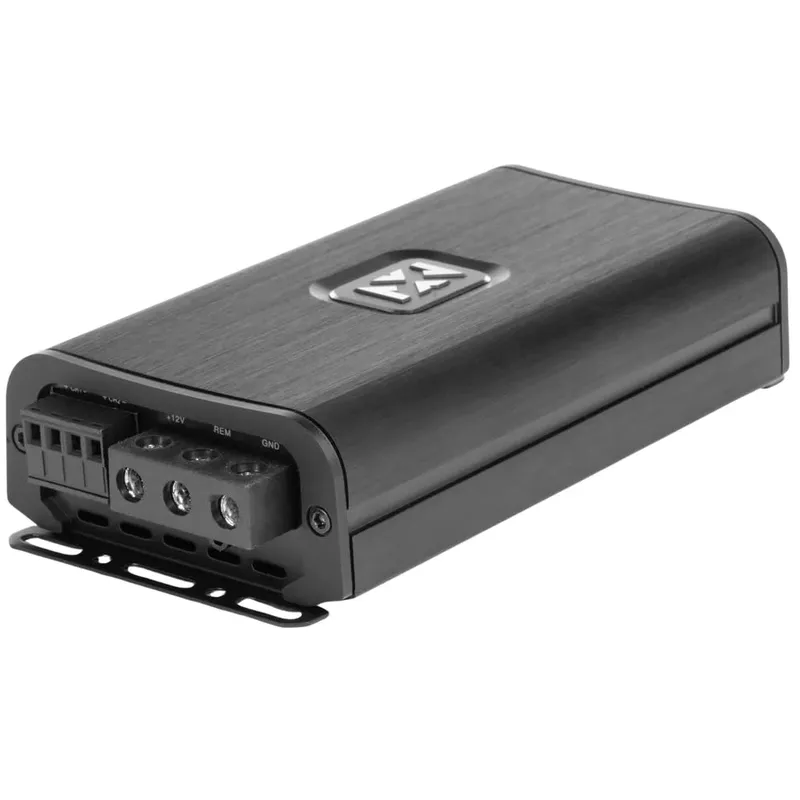

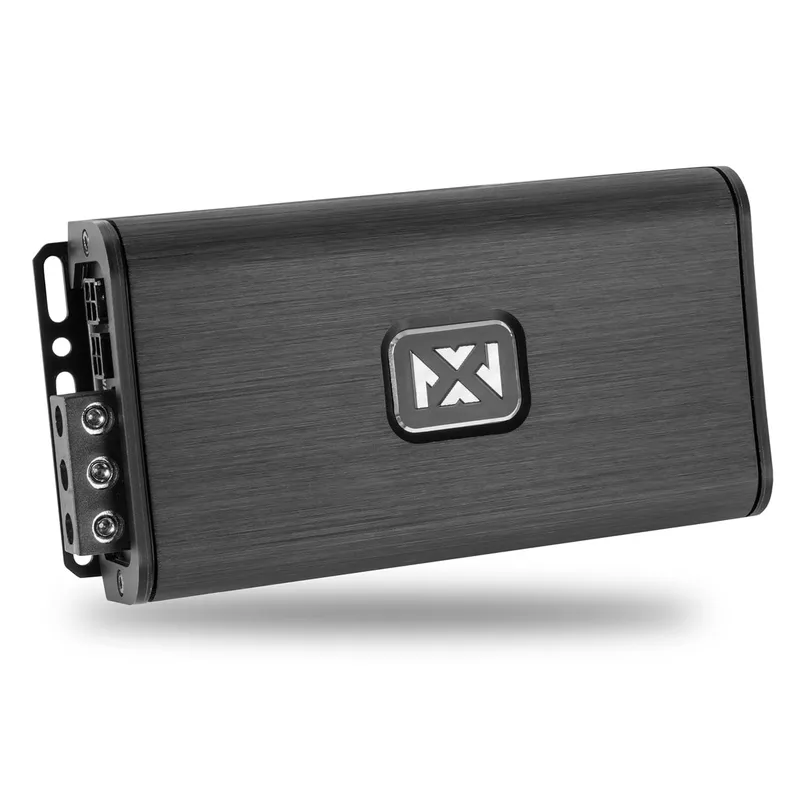

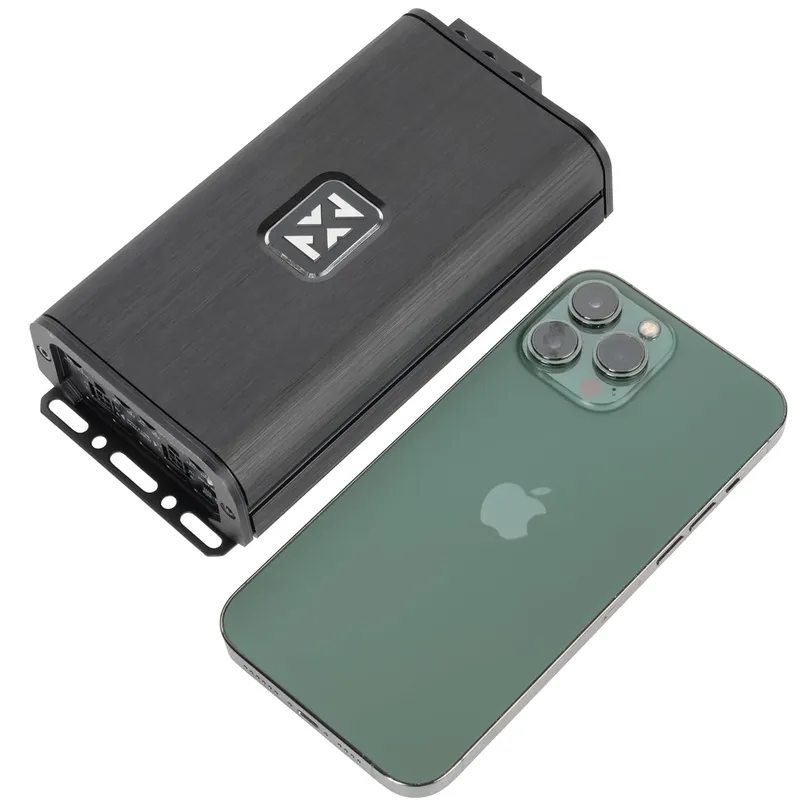

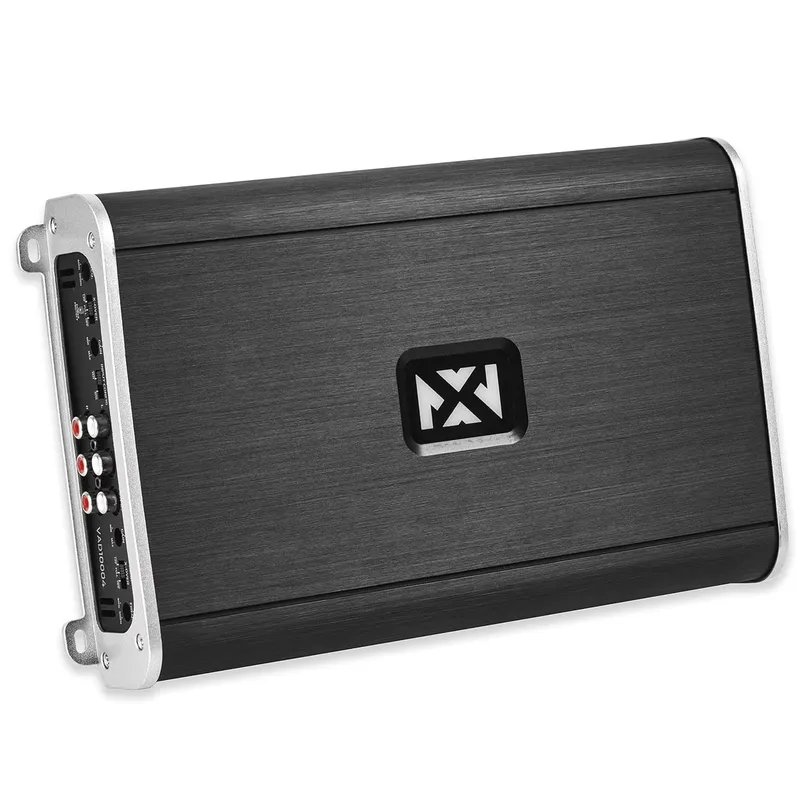

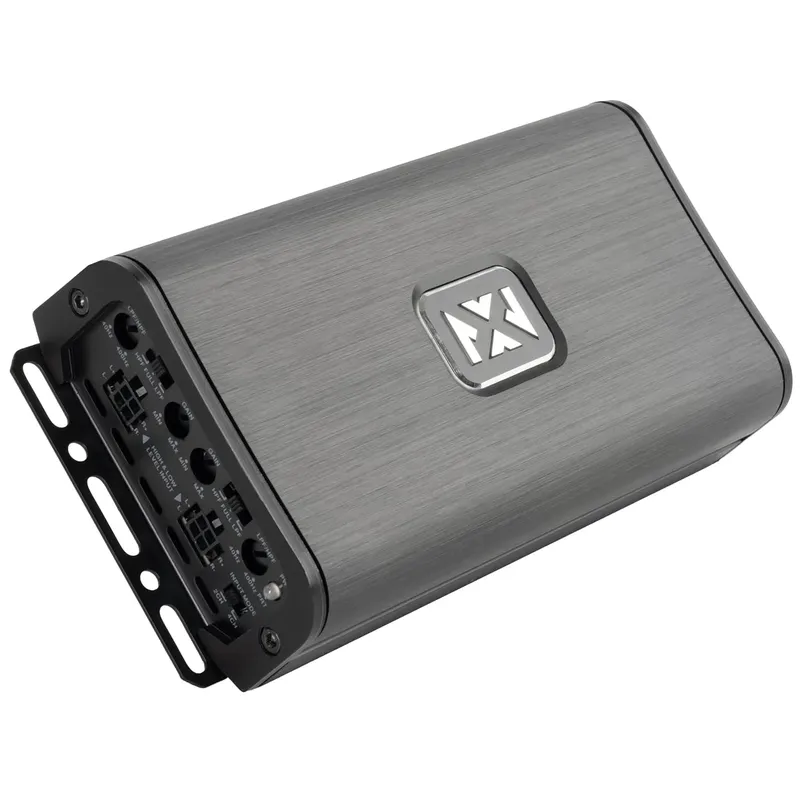

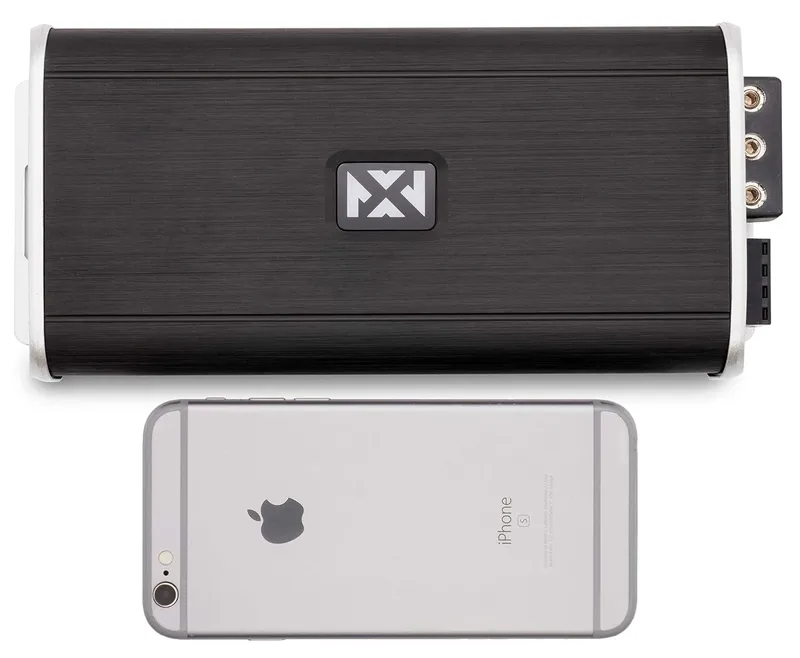

Experience the new NVX VADM4’s impressive power, boasting a peak power rating of 800 Watts and RMS power output ranging from 80 watts x 4 channels at 4 ohms to 125 watts x 4 channels at 2 ohms. Enjoy robust and reliable audio performance for your car, marine vessel, or powersports vehicle. Utilizing cutting-edge Micro Class D technology, this amplifier achieves an extremely compact form factor, measuring just 6.49″ L x 3.3″ W x 1.48″ H. Enjoy powerful sound without sacrificing valuable space in your vehicle or marine setup.
- Product Highlights
- 80 watts x 4 channel @ 4 ohm
- 125 watts x 4 channel @ 2 ohm
- Bridged: 250 watts x 2 channel @ 4 ohm
- Total RMS Power: 500 watts
- Class D 2 ohm Stable 4-Channel-Channel Amplifier
- Product Details:
- V Series Class D 2 ohm Stable 4-Channel Amplifier
- RMS Power Rating:
- 4 ohm: 80 watts x 4 channel
- 2 ohm: 125 watts x 4 channel
- Bridged: 250 watts x 2 channel @ 4 ohm
- Total power output: 500 watts
- LED Power/Protect Light
- Speaker-level (high-level) inputs (Requires adapter like the Kicker KISL)

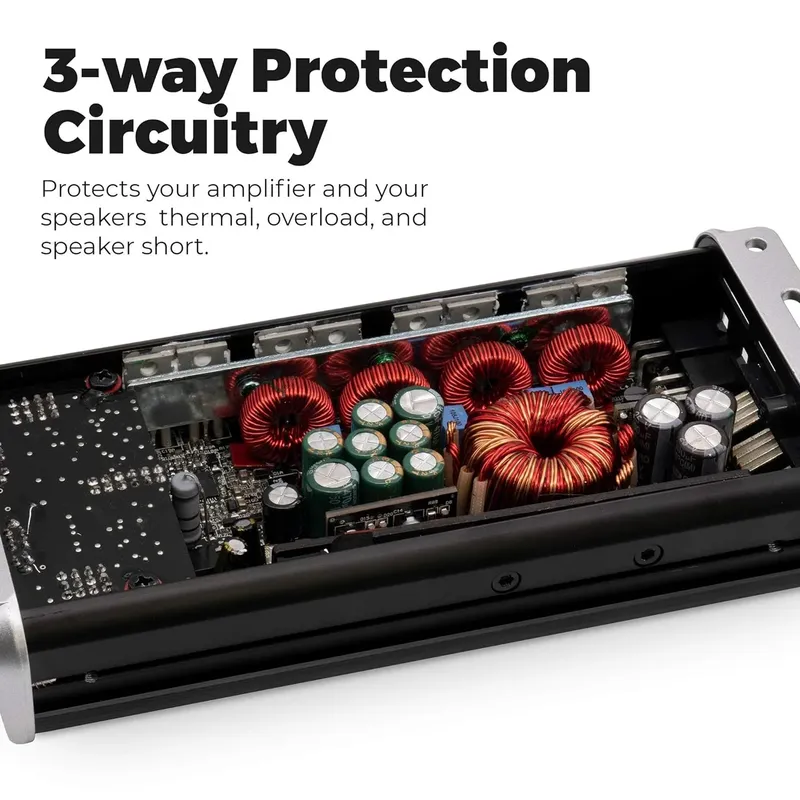

- 4-way protection circuitry (thermal, overload, speaker short protection and DC offset)
- Balanced differential inputs eliminate noise picked up by signal cables

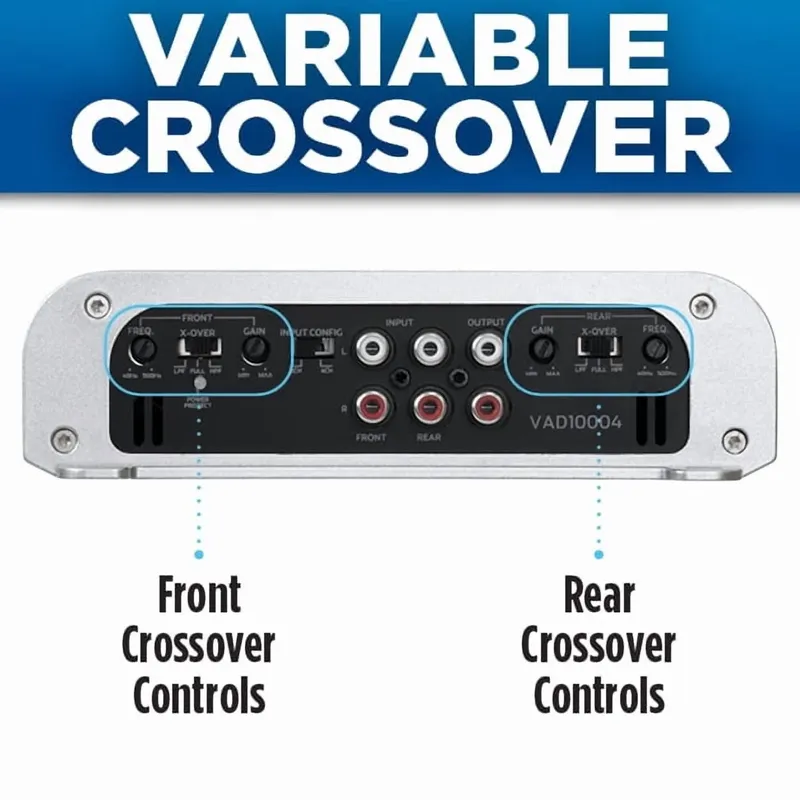

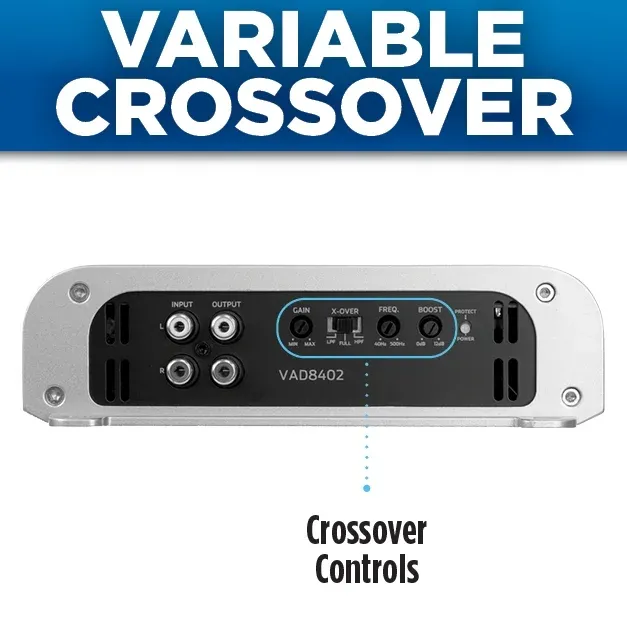

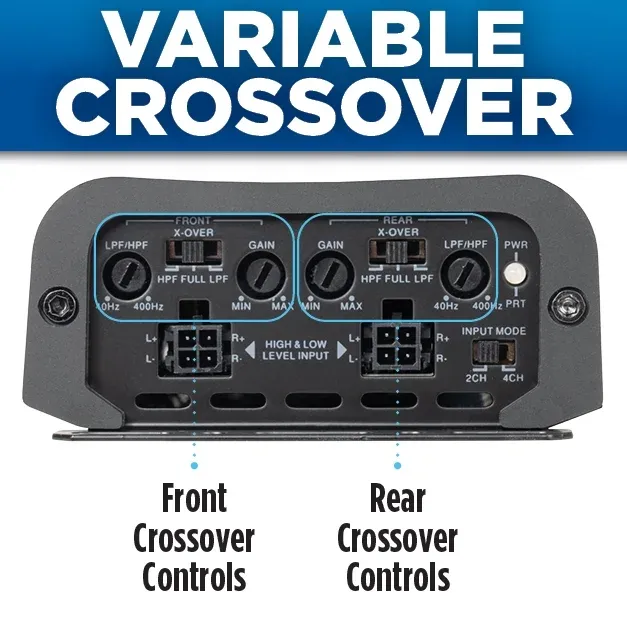

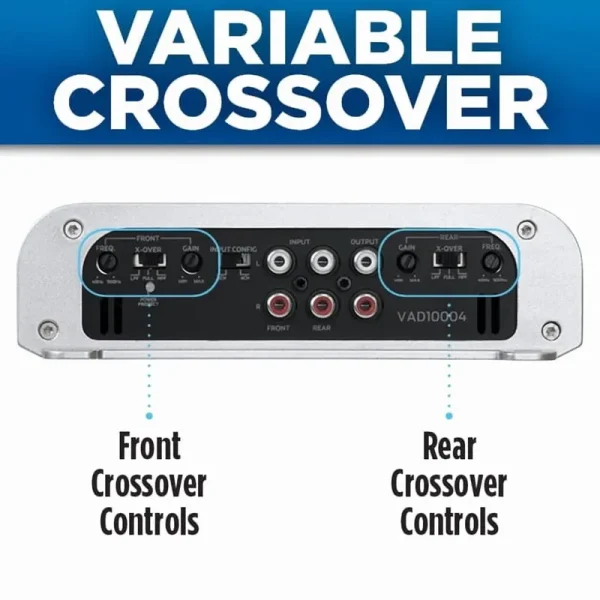

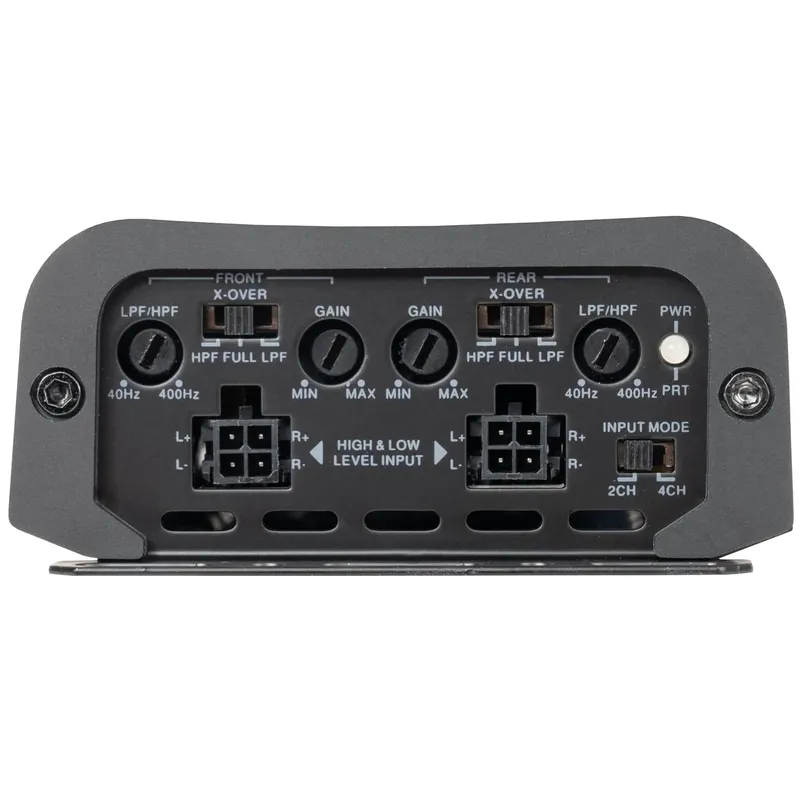

- Selectable crossover modes: FULL / HPF / LPF
- Input sensitivity:
- Low level and High level: 0.2 – 10 volts
- Frequency Response: 20 – 20000 Hz
- Total Harmonic Distortion (THD): <0.1%
- Signal to Noise Ratio: >96 dB
- Variable high-pass filter: 40 – 400 Hz
- Variable low-pass filter: 40 – 400 Hz
- 8 AWG gauge amplifier wiring kit is recommended for installation

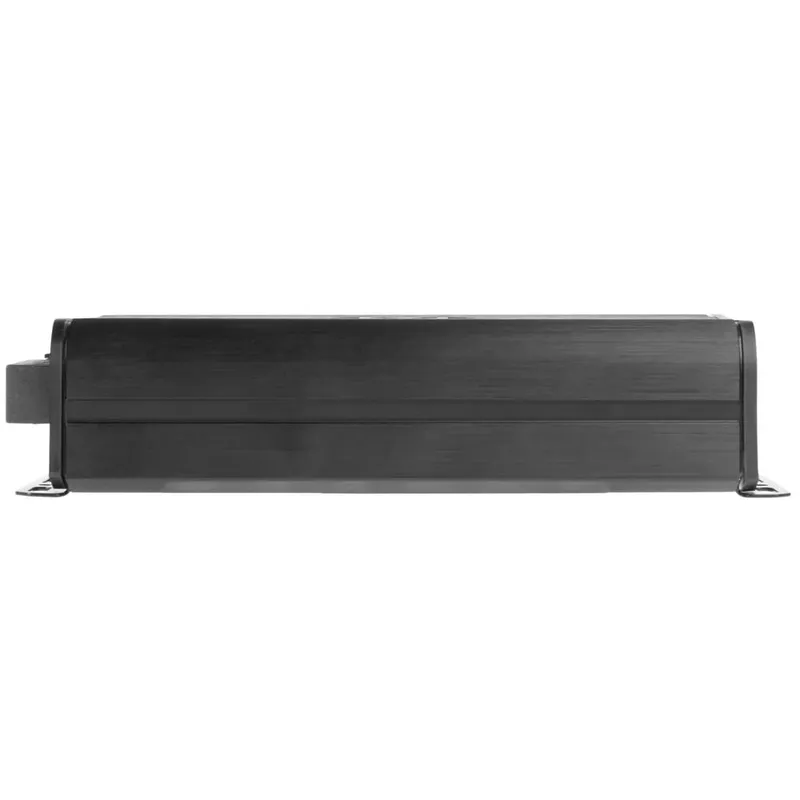

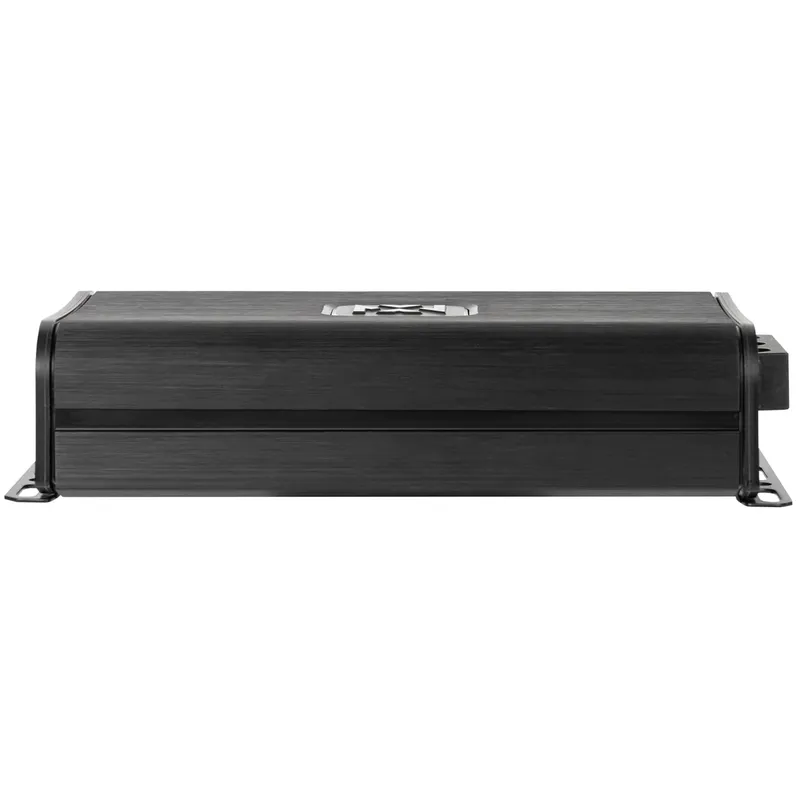

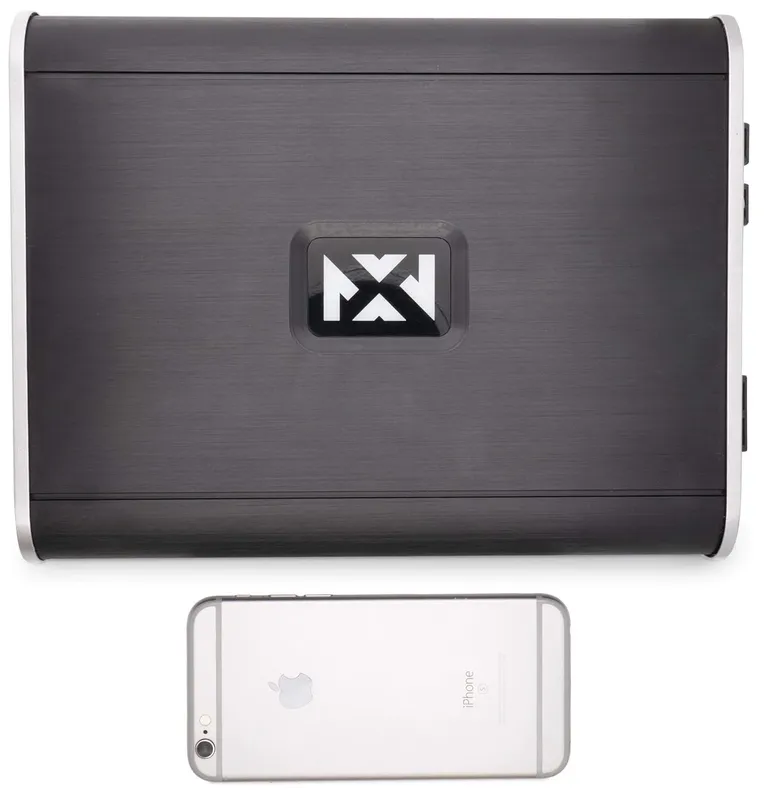

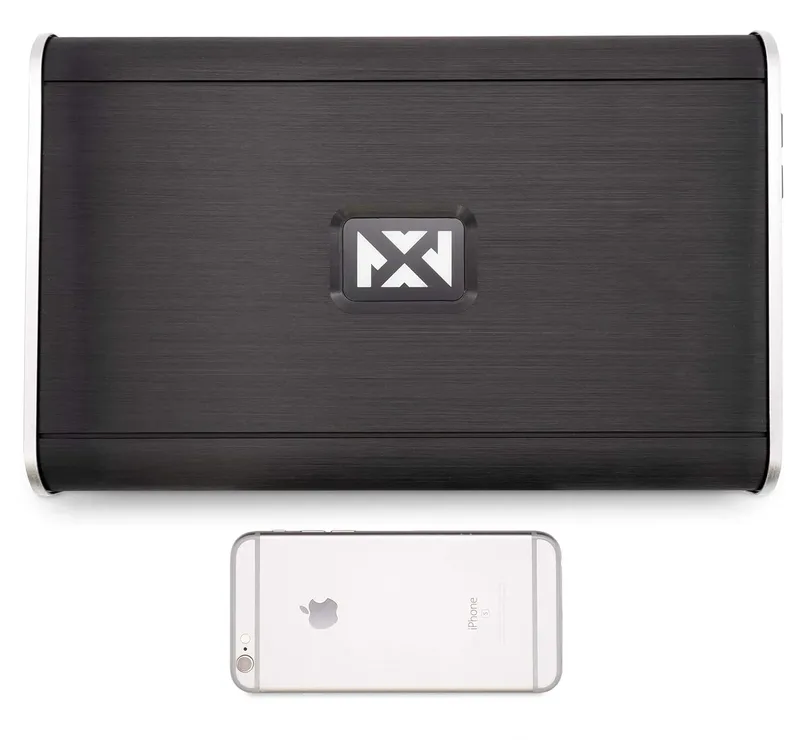

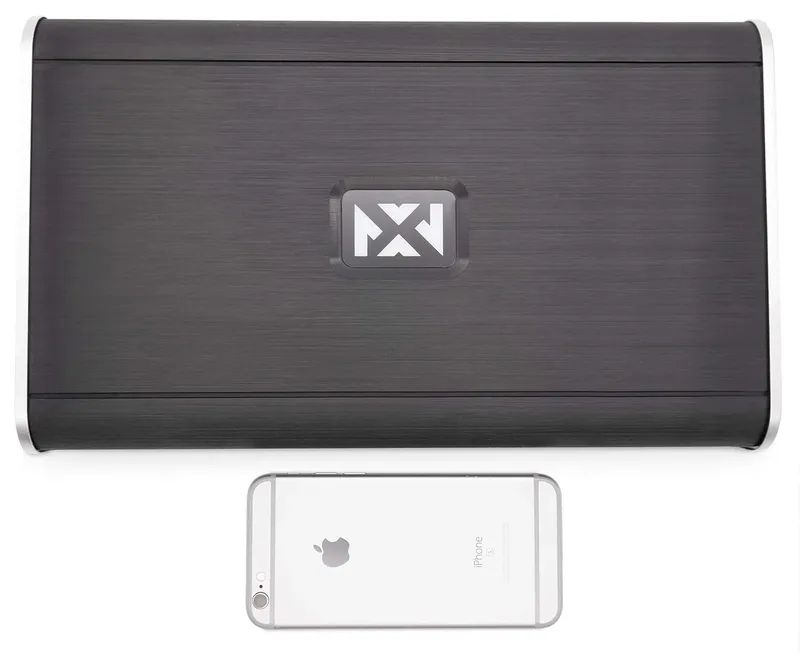

- Dimensions: 6.49″ L x 3.3″ W x 1.48″ H
- Authorized Internet Dealer
- 1-year Manufacturer’s Warranty
- MFR #: VADM4v2
- Key Features
- Amplifier Key Features – Compact Design
- Speaker Level Inputs – Weather-Resistant
- Power Specifications – Full Range Channels
- RMS Power @ 4 ohms – 80 watts x 4 channel
- RMS Power @ 2 ohms – 125 watts x 4 channel
- Bridged RMS Power – 250 watts x 2 channel
- Power Specifications – Full Range Channels
- Peak Power @ 4 ohms – 160 watts x 4 channel
- Peak Power @ 2 ohms – 250 watts x 4 channel
- Bridged Peak/Max Power – 500 watts x 2 channel
- Amplifier Specifications
- Series – V Series
- Amplifier Class – D
- Number of Channels – 4-Channel
- Total Peak Power Output – 1000 watts
- Total RMS Power Output – 500 watts
- Maximum Input Gauge Size – 8 AWG
- Minimum Impedance Unbridged – 2 ohm
- Minimum Impedance Bridged – 4 ohms
- Frequency Response – 20 – 20000 Hz
- THD at Rated RMS Power – <0.1%
- Speaker Level Inputs – Optional (Requires Accessory Adapter)
- Preamp Outputs – No
- Built-in Crossover – Low-Pass (LP), High-Pass (HP), Full (AP)
- High-Pass Crossover Frequency – 40 – 400 Hz
- Low-Pass Crossover Frequency – 40 – 400 Hz
- Signal-to-Noise Ratio – >96 dB

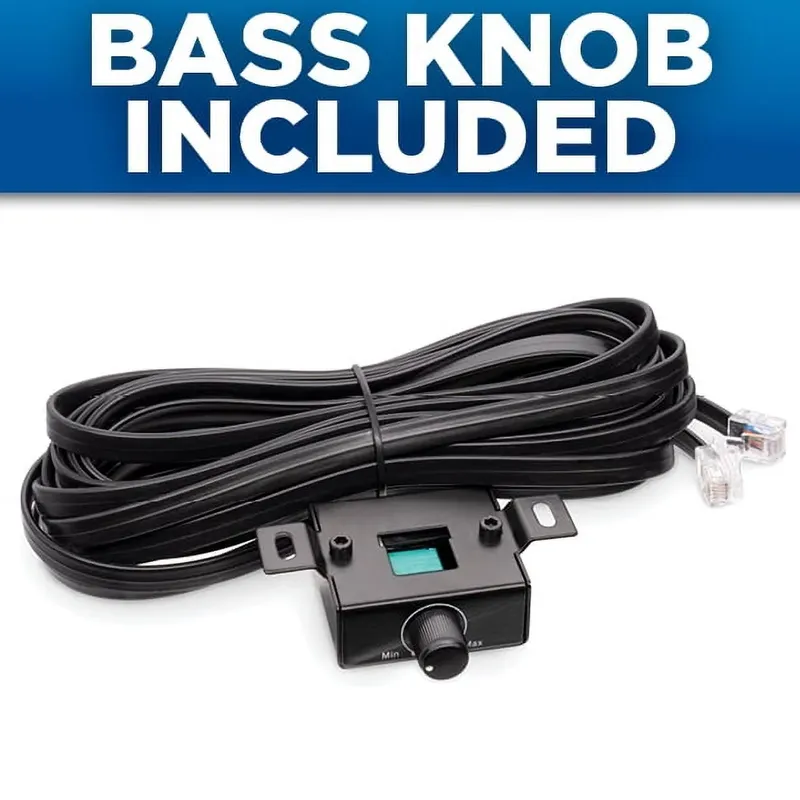

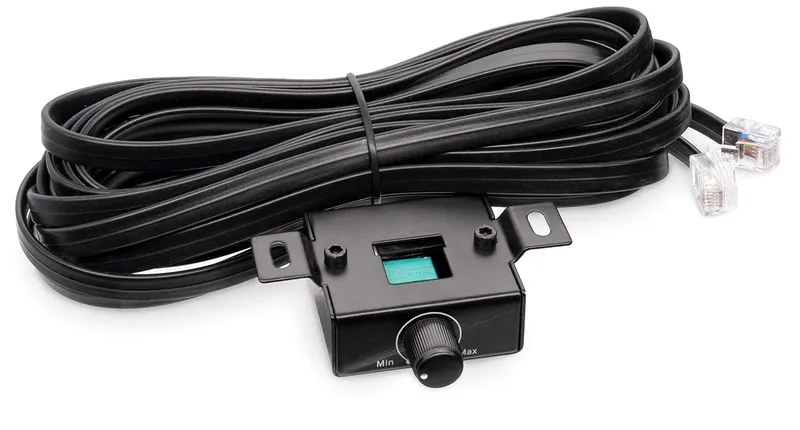

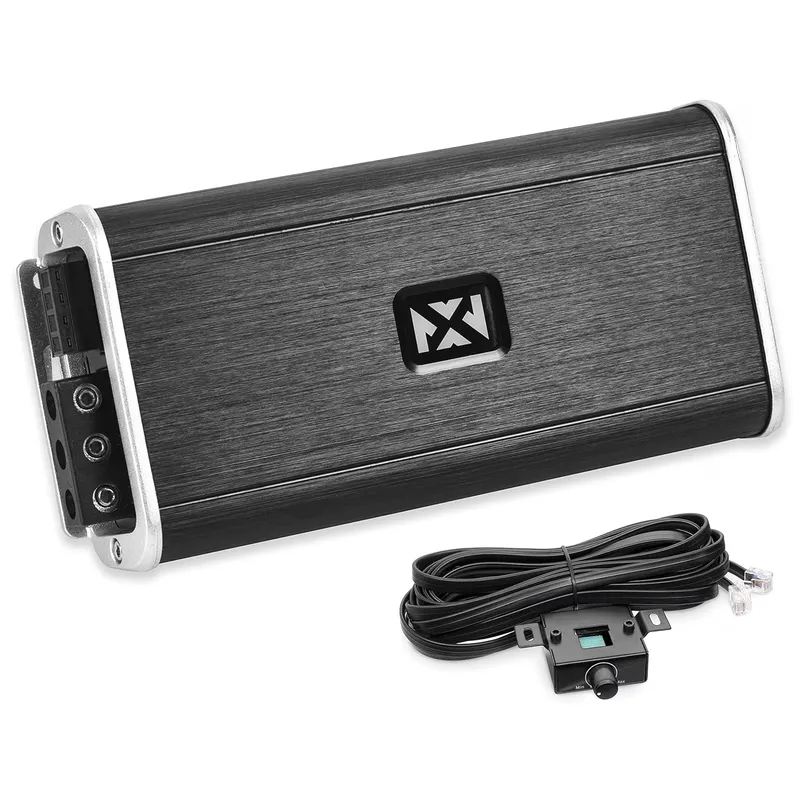

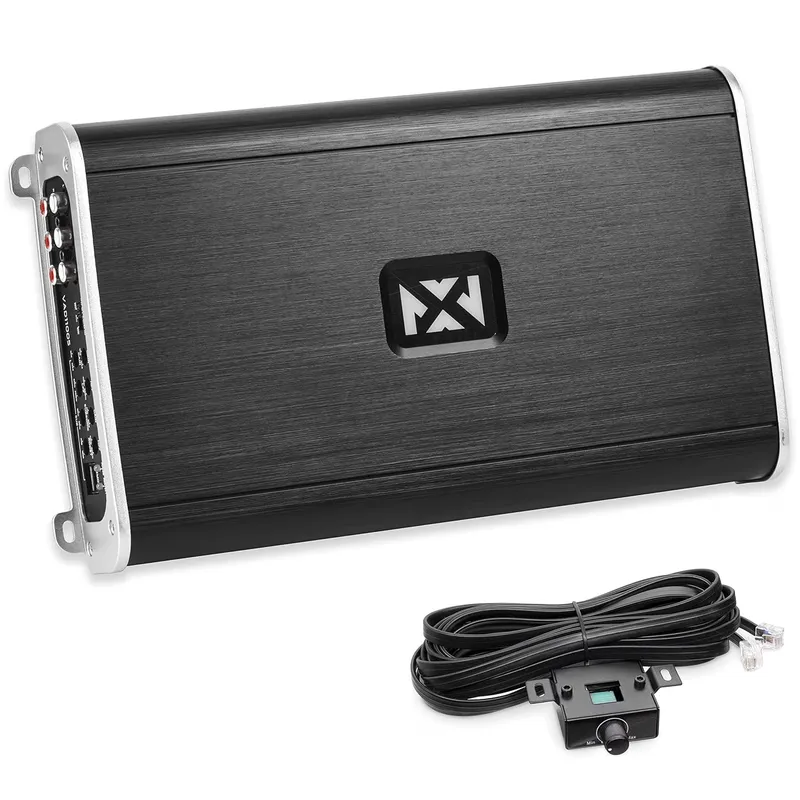

- Remote bass/level controller – Optional (Accessory required and sold separately), NVX XBRC: NVX XBRC Universal Bass Knob
- Strappable – No
- Sonic Certified Amplifier – Yes
- Amp Bluetooth Connectivity – No
- Hi-Res Certified – No
- Low-Level Input Sensitivity – 0.2 – 10 volts
- High-Level Input Sensitivity – 0.2 – 10 volts
- What is in the box?
- Paperwork – User manual

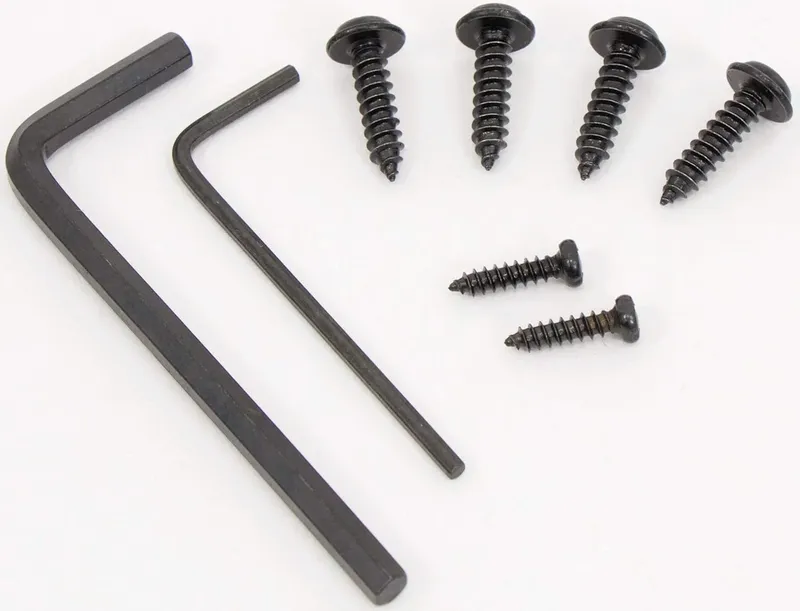

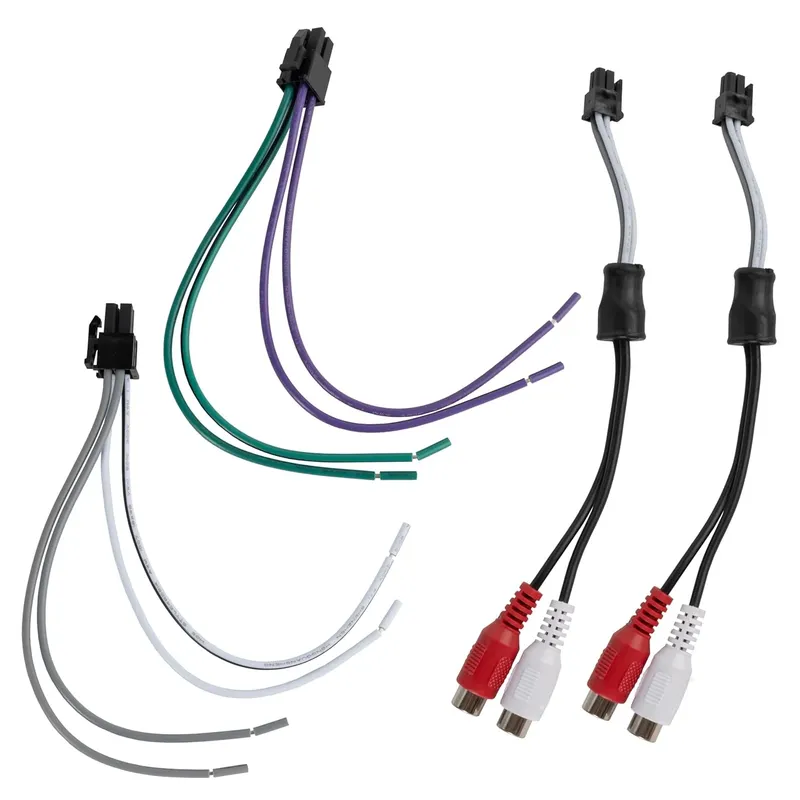

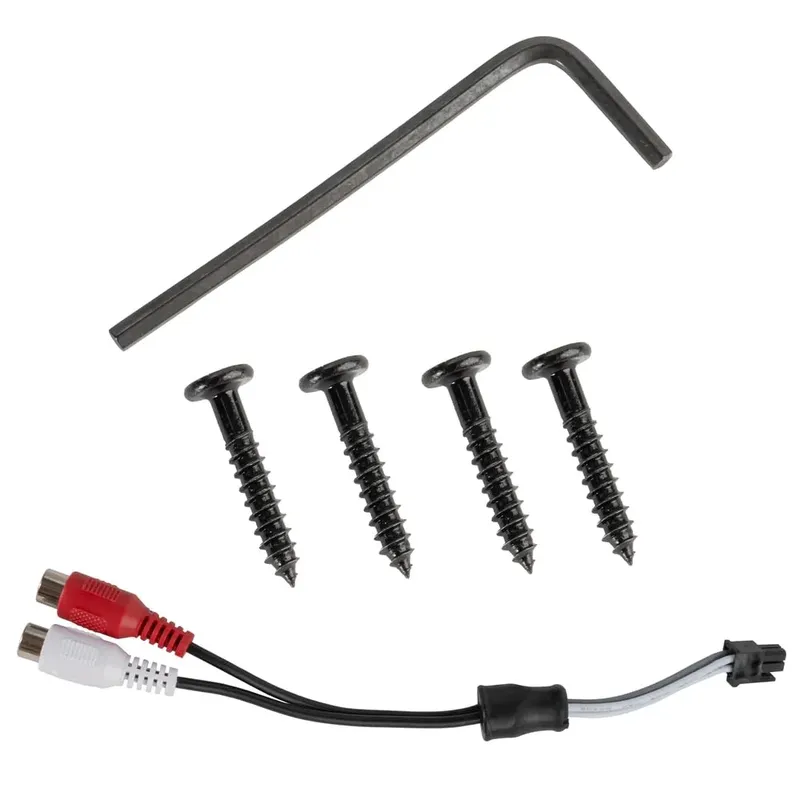

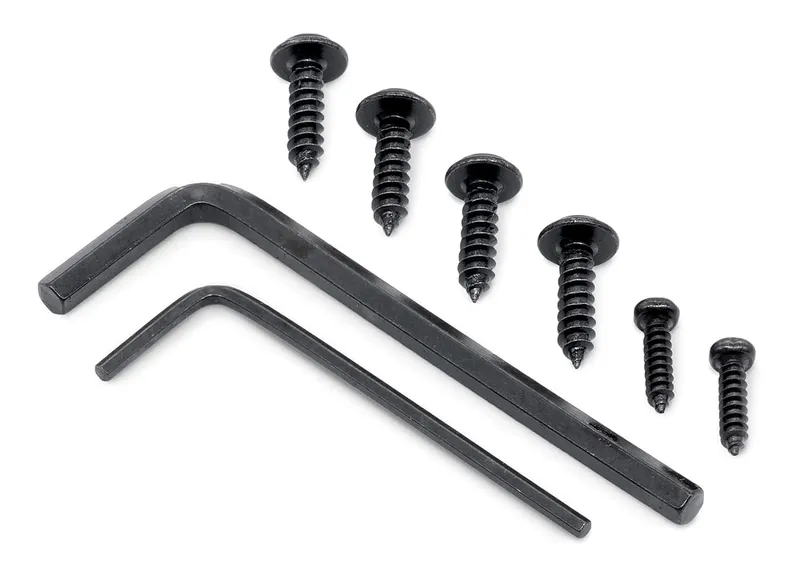

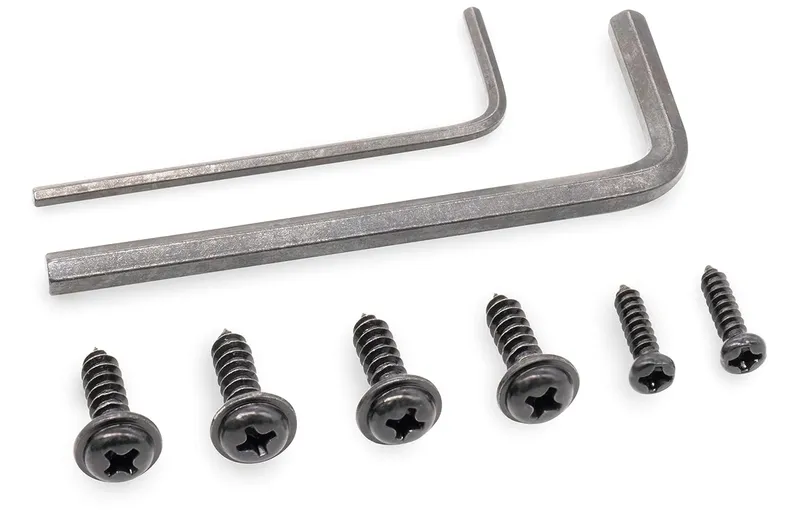

- WITB: Amplifiers – Amplifier, Mounting screws (4), High-level input wiring harness w/ molex connector, Allen wrenches (2)
- Warranty and Return Policy
- Parts Warranty Duration – 1 year
- Labor Warranty Duration – 1 year
- Warranty Provider – Manufacturer
