Description

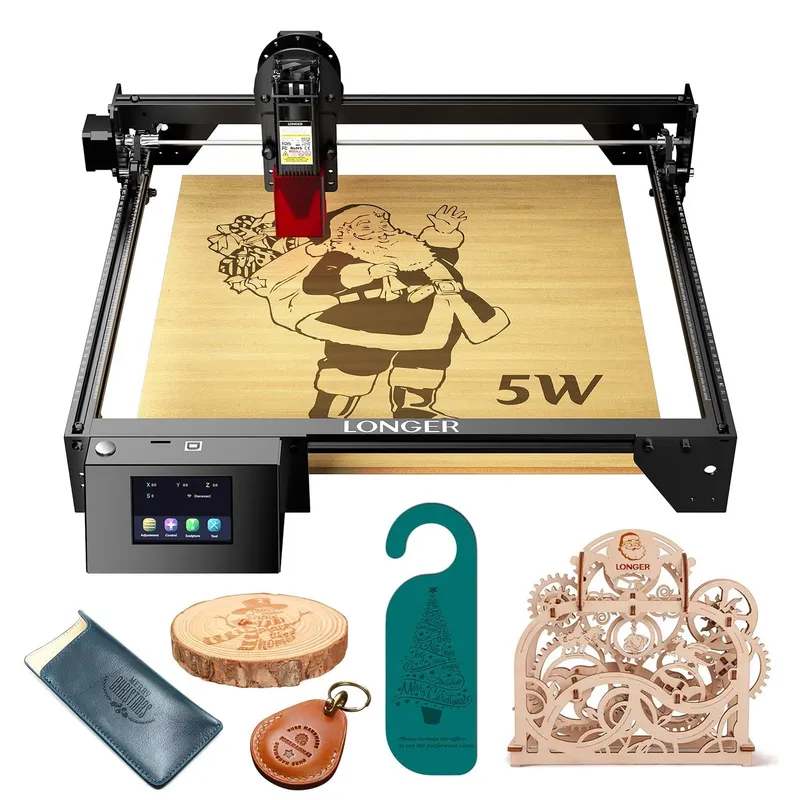

1. [32-bit chipset and WIFI connectivity] RAY5 is built using the 240MHz ESP32 chipset. It is faster and more powerful than the equivalent machine with 8-bit chipset. Support WIFI connection to control engraving or cutting through web or application, more convenient. 2. [Touch screen and offline engraving] 3.5-inch smart color screen, so you can easily meet various DIY needs. Built-in controller, no need to connect the laser engraving machine with computer. Just save the file to TF card, Ray5 will engrave or cut according to the program you set, use Ray5 anytime and anywhere. 3. [Ultra-fine laser dot and powerful laser module] This laser engraver adopts the latest laser technology, the laser laser dot size is 0.08 * 0.08 mm, which makes engraving or cutting more powerful. The engraving speed can reach 10000 mm/min. 4. [Safety protection] 1: power button; 2: active position protection; 3: thermal protection function; 4: current safety control system; completely safe, you can use with confidence. 5. [Professional technical support and after-sales service]Our experienced engineers provide you with technical support. Provide you with detailed manuals, suitable for any skill level. [Compatible with Windows/MAC/Linux System]RAY5 is compatible with free engraving software LaserGRBL and paid LightBurn software. It supports import with BMP, JPG, PNG, DXF, AI, SVG, etc file format. Laser Technology: Diode Fiber Laser Working Area: 400 x 400mm (15.75 x 15.75inch) Laser Wavelength: 450nm Focus Type: Fixed Focus – 30mm Focal Range Spot Size at Optimal Focus: 0.06 x 0.06mm Optical Output Power: 5W Z Axis-Height RangeUp to 65mm Engraving / Cutting Speed: 40 – 10000mm/min Engraver Output: DC12V 5A Engraver Input: AC110 – 240V Software: LaserGRBL, compatible with LightBurn Connection: USB / TF Card / Wifi Laser Engraver Size: 61 x 67 x 20cm (24 x 26 x 0.79inch) Package Size: 59 x 30 x 12.7cm
- 30mm Focal Range Spot Size at Optimal Focus: 0.08 x 0.08mm Optical Output Power: 5W Z Axis-Height RangeUp to 65mm Engraving / Cutting Speed: 40.
- 10000mm/min Engraver Output: DC12V 5A Engraver Input: AC110.
- 240V Software: LaserGRBL, compatible with LightBurn Connection: USB / TF Card / Wifi Laser Engraver Size: 61 x 67 x 20cm (24 x 26 x 0.
