Description

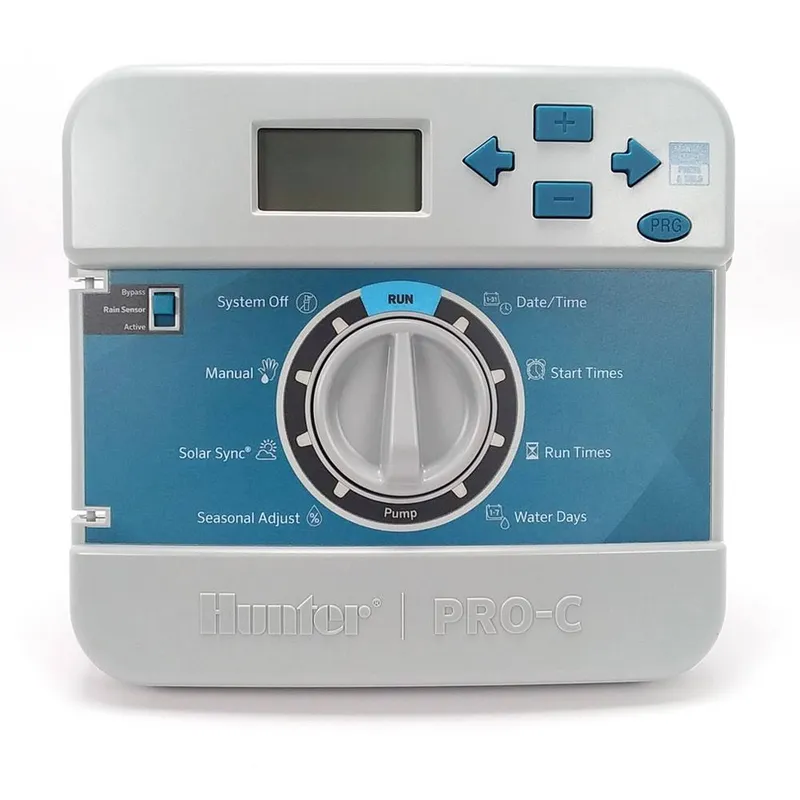

Hunter Pro-C Front Panel – 821501 Hunter Pro-C Front Panel Replacement Part 821501; Works with the Pro-C Hunter Controllers include all PC-400 and new style PCC models; This Pro-C panel is compatible with production models 2014 to current. Compatible controllers all PC-400 and new style PCC models. The number of stations for the Pro-C are 4 – 16 PCC 6 12. ; Number of stations: Pro-C: 4 – 16 PCC 6 12; Type: Pro-C: Modular PCC: Fixed; Enclosures: indoor and outdoor plastic; Materials: Plastic; Color: Grey; Related Articles Videos Articles How To Install A Hunter Mini Weather Station; How To Program An Irrigation Controller/Timer; How To Replace An Irrigation Controller/Timer; How To Add Modules To A Modular Irrigation Controller; Items To Consider Adding To The Irrigation Controller; How To Choose An Irrigation Controller; Videos Choosing A Timer; Replacement Parts Controller Repair Parts; How to Replace a PRO-C Front Panel Note: The Pro-C controller is truly modular in design. This means that most components of the controller can be removed and replaced if needed. For the newer style Pro-C blue panel and buttons the part number for the front panel is 821501. The part number for the older style Pro-C controllers green buttons is 526200. Steps 1 Steps 2 To remove the Pro-C’s front panel start by removing all power from the controller. Unplugging the transformer or shutting off the circuit breaker will be necessary to do this properly. Open the front panel similar to how the controllers door opens this should expose the battery compartment on the back of the front panel. Steps 3 Steps 4 Locate the gray ribbon cable in the upper right corner on the back of the front panel. Disconnect the ribbon cable from the back of the front panel by carefully pulling the plastic cable connector off the back of the front panel. Steps 5 Steps 6 Locate the Hinge Release switch below the ribbon cable connector on the back of the control panel. Push down on the white tab the hinge pins will retract and allow the front panel to come free from the cabinet. After the panel is removed you can reverse this process to install the new face panel.
