Description
Features:
- ��LIGHTWEIGHT AND ULTRA-THIN FOR EASIER MOVING��– This solar panel packs 110W of power yet is only 0.5inch (1.2cm) thick and weighs only 6lb (2.7kg).Foldable Dimension:21*20*1inch (54*50*2.4cm). making it easier to transport. hang. and remove.
- ��PERFECT CHOICE FOR OUTDOOR AND EMERGENCY LIFE��– 9.85ft (3m) cable length from panel to controller. For most power stations (Jackery.Goal Zero.Ecoflow.Paxcess) and 12-volt batteries(AGM.LiFePo4.Deep cycle batteries).RV.car.boat.trailer.truck.pumpa.camping.van.emergency power
- ��COMPLETE KIT .WORKS OUT OF THE BOX ��– Smart PWM charging Intelligent protection against reverse polarity. overcharging. short-circuit. and reverse current.Integrated 5V 2A USB ports to charge phones USB devices.If you use the built-in MPPT Power Station. you don’t need to connect the attached PWM controller.
- ��AFFORDABLE AND HIGH CONVERSION EFFICIENCY��– With high efficiency monocrystalline solar cell. you will get greater power efficiency even though the panel is smaller than a traditional model.Maximizes system output by reducing mismatch loss.
- ��XT60 EXTENSION CORD AND BRACKET��– If you want to find additional extension cord and support bracket for your DOKIO solar panel.
Specification
* Maximum Power: 100W
* Optimum Operating Current (Imp):6.10A
* Optimum Operating Voltage (Vmp): 18.9V
* Short-Circuit Current (Isc):6.35
* Open-Circuit Voltage (Voc): 22.5V
* Maximum System Voltage:600V DC (UL)
*Foldable Dimension:28×20.5×0.4(in)
* Expansion Dimension:40x28x0.2(in)
* Net Weight:2.4kg
*Package Weight:2.8kg (including wire and controller)
Solar Controller Tips:
<1>Please keep it in cool and well ventilated place to maintain good heat dissipation.
<2>The controller is only suitable for lead acid batteries:OPEN. AGM. GEL. not for nickel hydride. lithium. ions. or other batteries.
<3>Ensure your battery has enough voltage for the controller to recognize the battery before first installation.
<4>When the battery voltage is too low. the controller will stop output; after the solar panels charging. the battery will return to 12.6 V. It is a natural to output.
Package Contents:

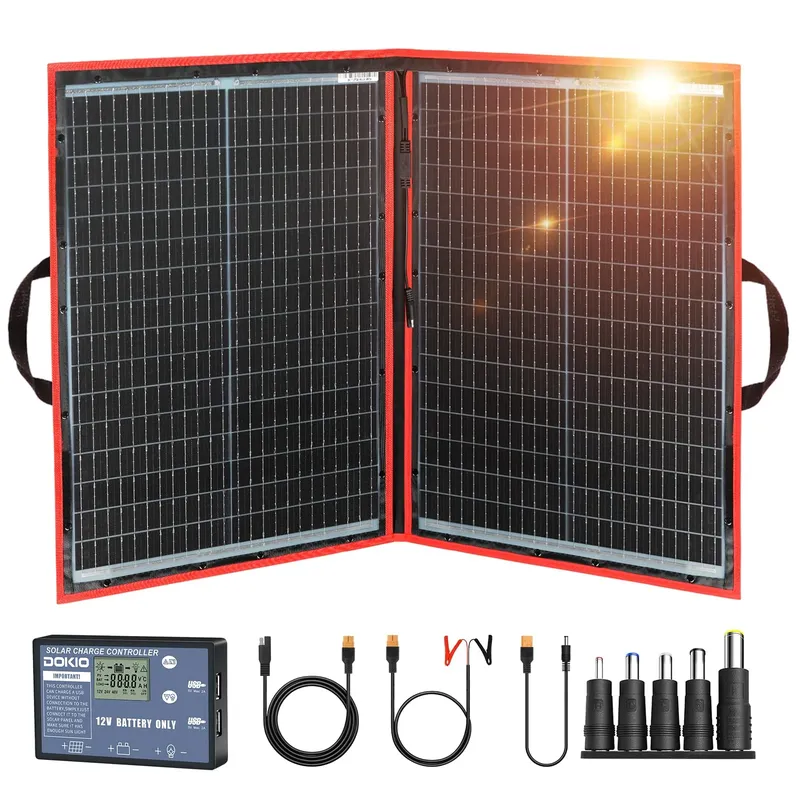

1 x Dokio 100W Foldable solar panel
1x Dokio solar controller
1 x User
