Description
Product Overview

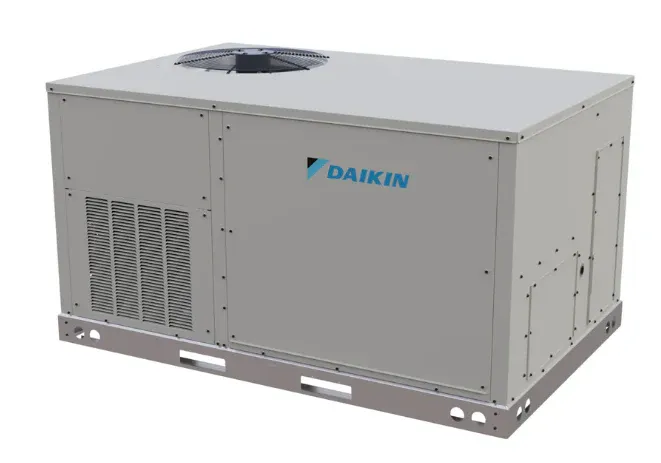

The Daikin DHH0601D000001S is a commercial-grade packaged rooftop heat pump engineered to provide both heating and cooling in one self-contained system. With a 5-ton capacity and high-efficiency performance ratings, this unit is designed for dependable, year-round comfort in light commercial applications. Its two-stage compressor and ECM blower motor help deliver balanced temperature control, energy savings, and long-term reliability in demanding environments.
Key Features & Performance
Model: Daikin DHH0601D000001S
System Type: Packaged Commercial Heat Pump (Heating & Cooling)
Capacity: 5 Ton / 60,000 BTU Cooling
Heating Capacity: Approx. 59,000 BTU
Efficiency Ratings:
-
16.8 SEER2
-
12.2 EER
-
7.7 HSPF2
Operation: Two-Stage Scroll Compressor
Configuration: Packaged Rooftop Unit
Refrigerant: R-32
Motor Type: Direct-Drive ECM Blower Motor
Electrical: 208/230V, 1-Phase, 60 Hz
Airflow: Up to ~1,950 CFM
Dimensions (H × W × D): Approx. 43-1/2″ × 47-1/2″ × 74″
Approximate Weight: ~630 lbs
