Description
Product Overview

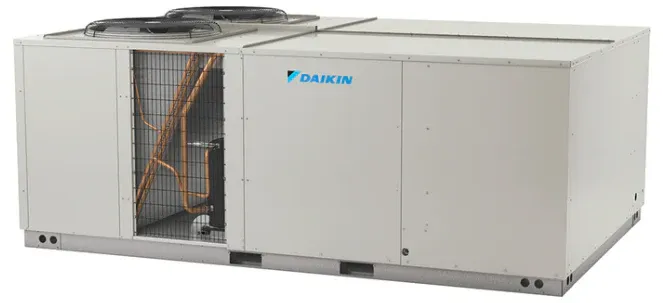

The Daikin DSG3003DL00001S is a 25-ton light commercial packaged gas/electric rooftop HVAC unit from Daikin’s DSG series, designed for large commercial and industrial buildings requiring low-heat gas heating with full-capacity electric cooling. Ideal for facilities with high cooling demand but moderate heating needs, it provides reliable year-round climate control.
Built for performance and durability, the DSG3003DL00001S features high-static airflow, direct-drive fan motors, and large heat transfer coils for consistent temperatures across complex duct systems. Its factory-assembled construction, pre-wired controls, and rugged weather-resistant cabinet simplify installation and support long-term reliability. Typical applications include large offices, retail centers, warehouses, and light industrial facilities.
Quick Facts
- Model: DSG3003DL00001S
- System Type: Packaged gas/electric rooftop HVAC unit
- Cooling Capacity: ~25 tons (~300,000 BTU/h)
- Heating Capacity: Low-heat configuration (~400,000 BTU input, model-dependent)
- Refrigerant: R-410A
- Efficiency: ~11 EER / ~14–15 IEER
- Voltage/Phase: 208/230 V, 3-phase
- Compressor: Scroll (single or dual)
- Design: High-static, direct-drive packaged system
- Installation: Rooftop or ground-mounted
- Application: Commercial HVAC for large offices, warehouses, retail centers, and industrial buildings
