Description
Product Overview

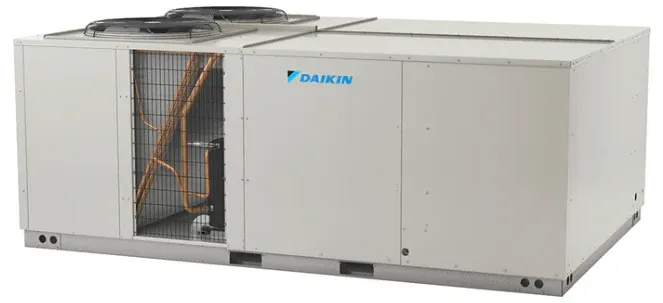

The Daikin DSG2403DL00001S is a 20-ton light commercial packaged gas/electric rooftop HVAC unit from Daikin’s DSG series, designed for large commercial and industrial buildings that require low-heat gas heating with full-capacity electric cooling. This configuration is ideal for facilities with moderate heating needs but high cooling demand.
Built for reliability and efficiency, the DSG2403DL00001S features high-static airflow, direct-drive fan motors, and large heat transfer coils to maintain consistent temperatures across expansive or complex duct systems. Its factory-assembled construction, pre-wired controls, and durable weather-resistant cabinet simplify installation while ensuring long-term operation. Typical applications include large offices, retail centers, warehouses, and light industrial facilities.
Quick Facts
- Model: DSG2403DL00001S
- System Type: Packaged gas/electric rooftop HVAC unit
- Cooling Capacity: ~20 tons (~240,000 BTU/h)
- Heating Capacity: Low-heat configuration (~350,000 BTU input, model-dependent)
- Refrigerant: R-410A
- Efficiency: ~11 EER / ~14–15 IEER
- Voltage/Phase: 208/230 V, 3-phase
- Compressor: Scroll compressor (single or dual, model-dependent)
- Design: High-static, direct-drive packaged system
- Installation: Rooftop or ground-mounted
- Application: Commercial HVAC for offices, retail centers, warehouses, and light industrial buildings
