Description
Bring flexible comfort to multiple rooms with this 28000 BTU 2 Zone mini split AC and heating system. Designed for dual-zone control, this ductless mini split air conditioner allows you to cool or heat up to 2 areas with independent temperature settings. The advanced inverter system delivers energy-efficient performance with a 20 SEER2 rating and supports smart control via built-in WiFi—easily manage it through the app, included remote, or voice commands using Alexa and Google Assistant. Built for demanding climates, the outdoor unit features chassis electrical heating to ensure reliable operation even in extreme conditions. With 7 operating modes and 8 fan speeds ranging from mute to turbo, it adapts seamlessly to changing seasons and comfort needs. Maintenance and daily use are simplified with a self-cleaning function, a 24-hour timer for scheduled operation, 4D airflow for enhanced coverage, and ultra-quiet performance as low as 28 dB.
Please note: Installation of this mini split AC unit should only be performed by a licensed HVAC installer.
Features

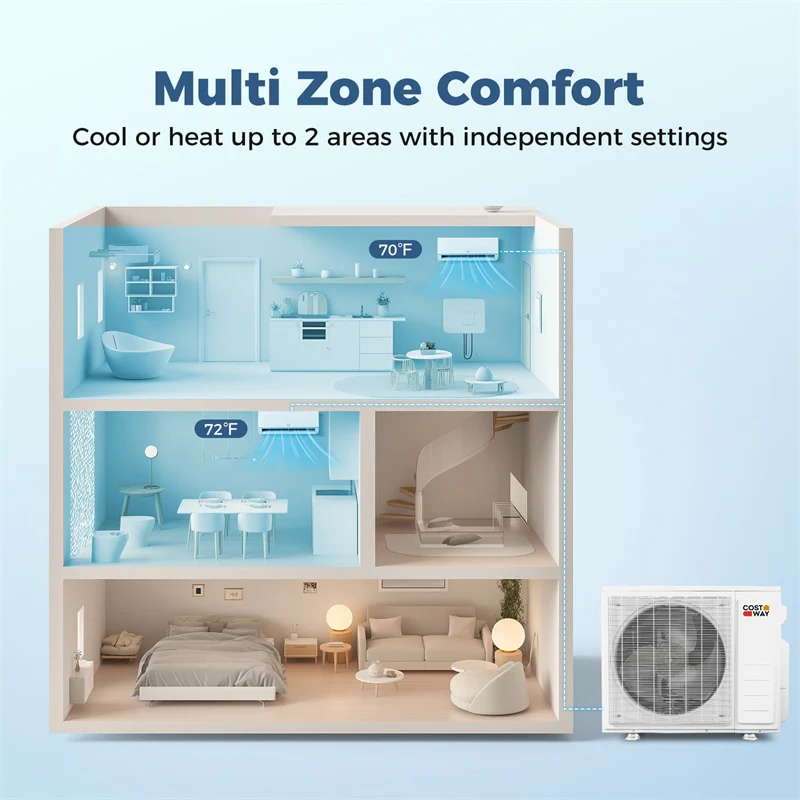

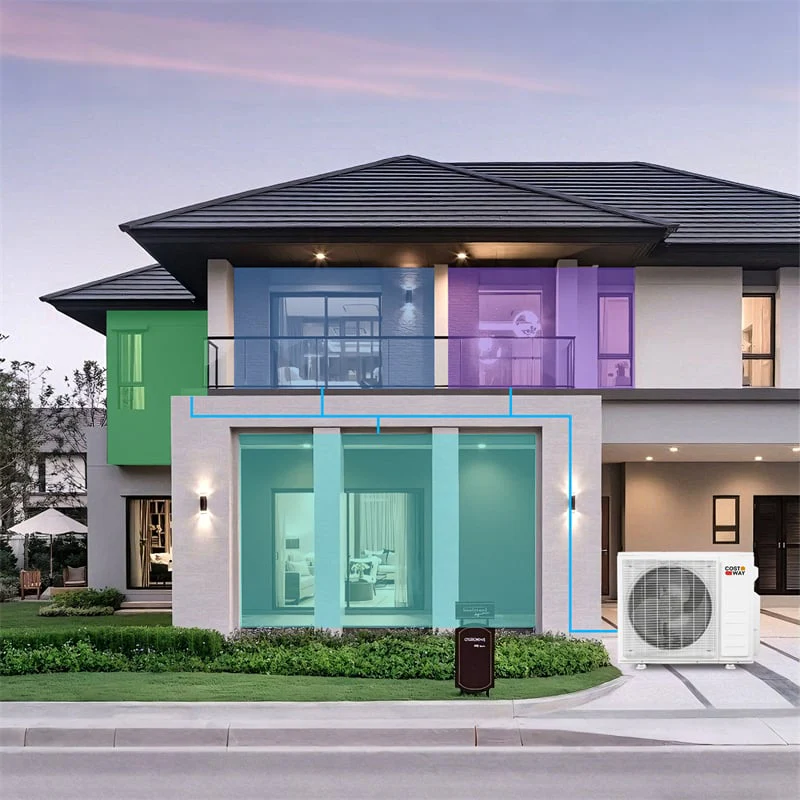

- Multi-Zone Comfort & Gentle Airflow: This 28000 BTU 2-zone mini split air conditioner with heating system delivers personalized, room-by-room comfort for larger homes. The dual zone design allows you to customize temperatures exactly where needed. The 4D swing distributes air more evenly, while the golf ball dimple design creates a softer breeze and helps prevent direct airflow.

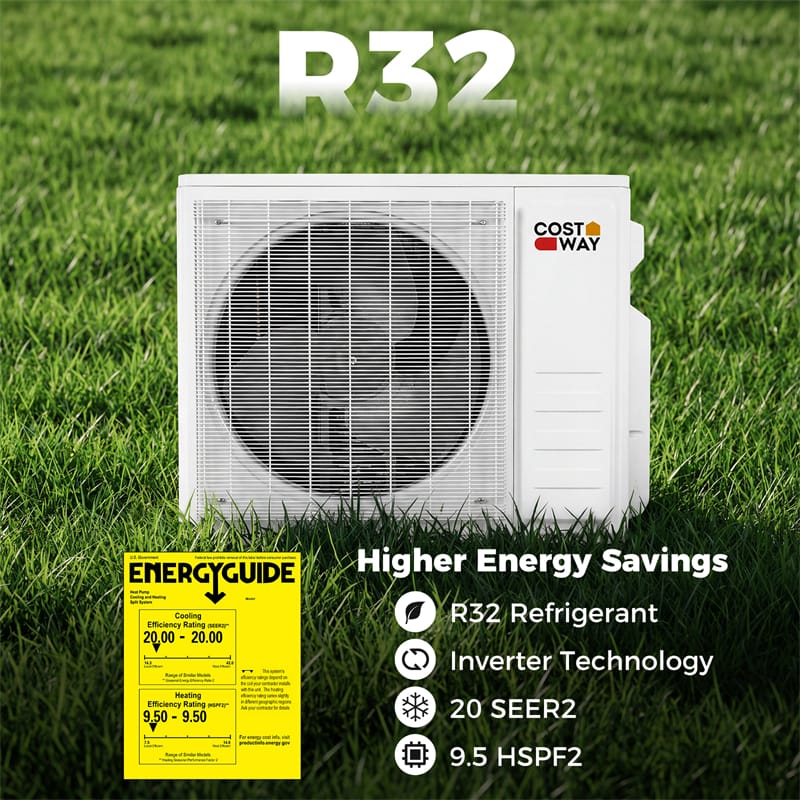

- Higher Energy Savings: With a 20 SEER2 rating, this ductless mini split AC unit is engineered to provide powerful heating and cooling with energy-efficient performance. Advanced inverter technology reduces energy consumption while maintaining stable indoor temperatures.

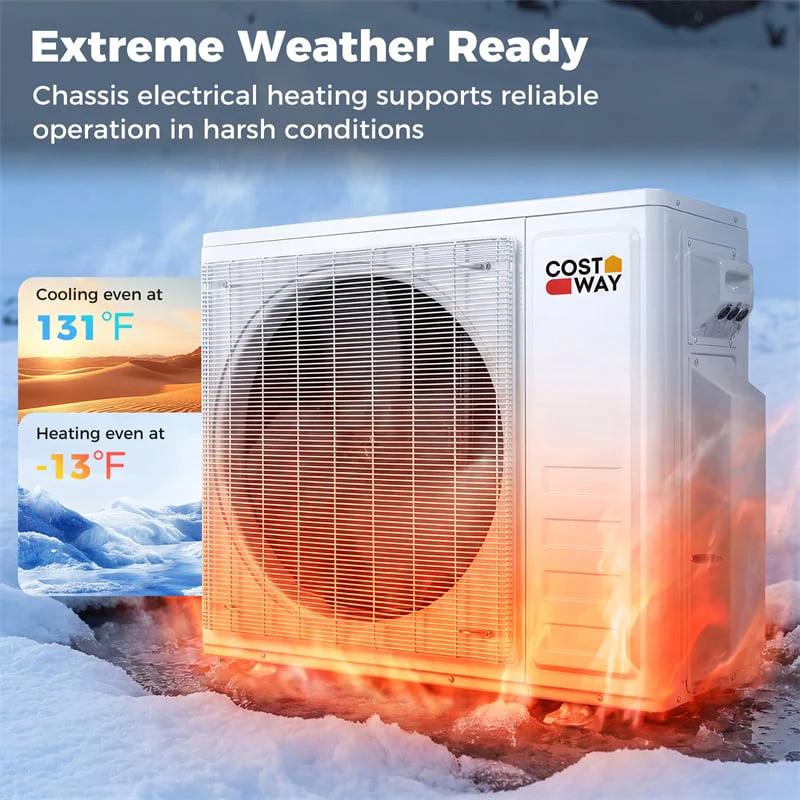

- Extreme Weather Ready: The outdoor unit features chassis electrical heating to ensure reliable operation in harsh climates, delivering cooling even at 55℃/131℉ and heating even at -25℃/-13℉.

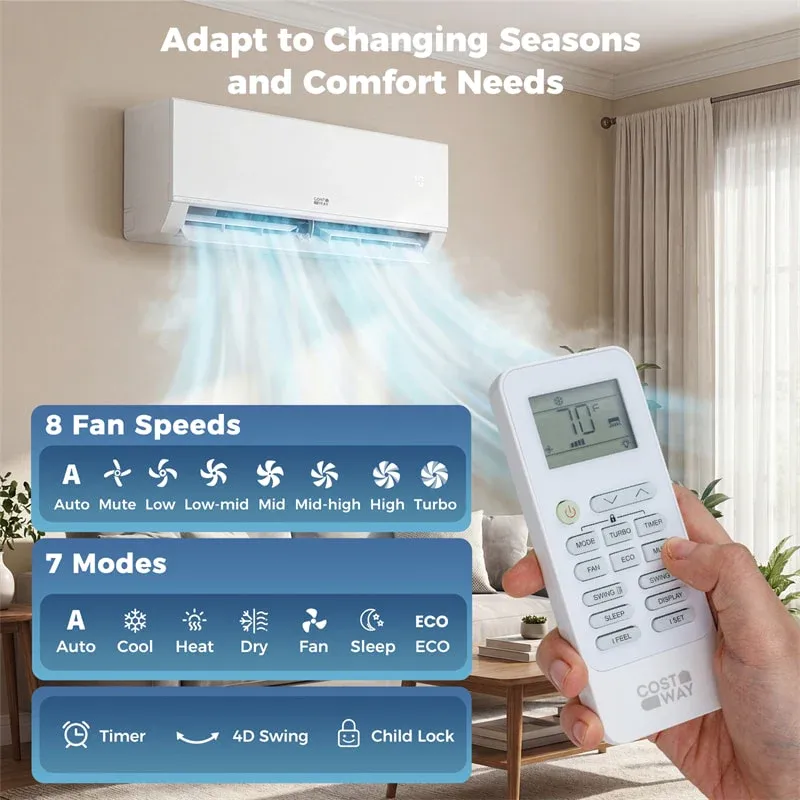

- Smart Control & Modes: This WiFi-enabled mini split air conditioner and heater is compatible with Alexa and Google Assistant, and also includes a remote control for easy operation. It offers 7 modes (auto, cool, heat, dry, fan, ECO, sleep), 8 fan speeds (auto, mute, low, low-mid, mid, mid-high, high, turbo), a 24-hour timer, and a child lock for enhanced everyday convenience.

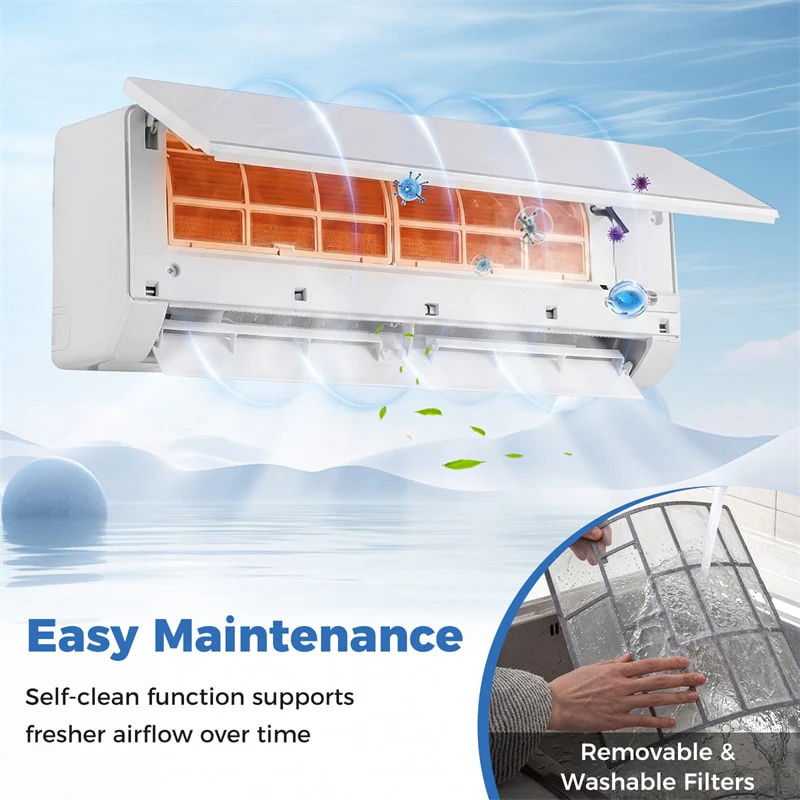

- Low Noise & Easy Maintenance: This multi-zone ductless split air conditioner with heat pump operates quietly, with noise levels as low as 28 dB, allowing you to enjoy uninterrupted comfort. Maintenance is simple with the self-cleaning function and washable filters. Note: Professional installation by a licensed HVAC technician is recommended.
Specifications
- Color of Indoor Unit: White
- Color of Outdoor Unit: White
- Material: Cold-rolled Steel Sheet, Copper, Aluminum

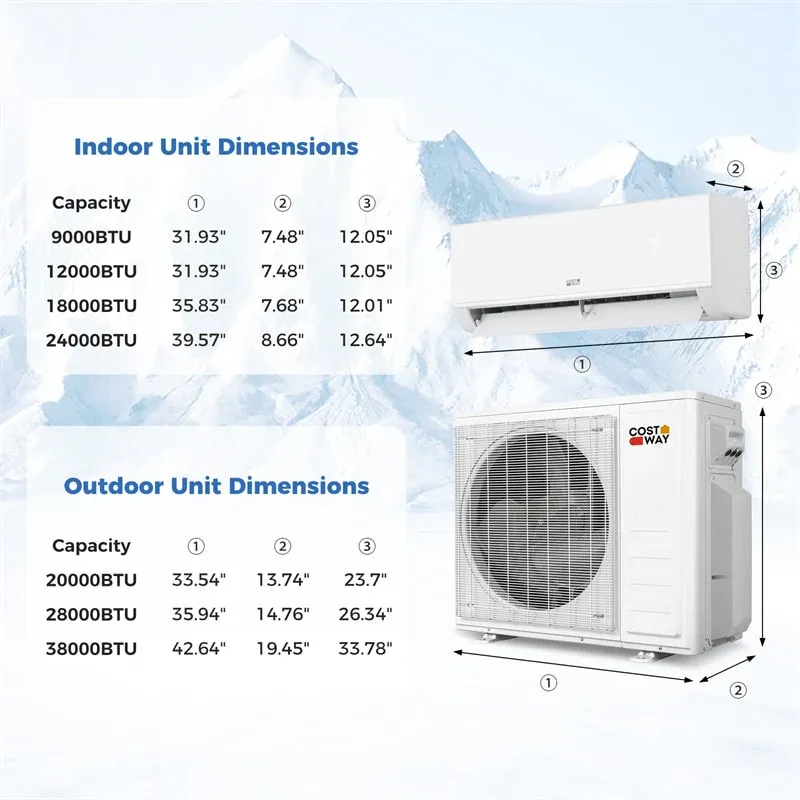

- Indoor Unit Dimensions:
9K: 31.93” x 7.48” x 12.05” (L x W x H)
12K: 31.93” x 7.48” x 12.05” (L x W x H)
18K: 35.83″ x 7.68″ x 12.01″ (L x W x H)
24K: 39.57″ x 8.66″ x 12.64″ (L x W x H) - Outdoor Unit Dimensions: 35.94″ x 14.76″ x 26.34″ (L x W x H)
- Multi-Zone Combination: 2
- Voltage: 208-230V
- Frequency: 60Hz
- Temperature Setting Range: 60℉~88℉
- Refrigerant: R32
- Indoor Unit Noise Level: 28 dB
- Max Remote Control Distance: 39.5 ft
- Coverage Area:
9k: 450 Sq. Ft
12k: 750 Sq. Ft
18k: 1250 Sq. Ft
24k: 1500 Sq. Ft - Dehumidification Capacity:
9k: 66 Pints/Day
12k: 81.2 Pints/Day
18k: 111.6 Pints/Day
24k: 131.9 Pints/Day - Maximum Air Flow Volume:
9k: 335 CFM
12k: 342 CFM
18k: 617 CFM
24k: 847 CFM - SEER2: 20
- HSPF2: 9.5
- Diameter of Liquid Pipe: 1/4″
- Diameter of Gas Pipe:
9k: 3/8″
12k: 3/8″
18k: 3/8″
24k: 1/2″ - Outdoor Unit Net Weight: 94.8 lbs
- Net Weight of Indoor Unit
9k: 19.8 lbs
12k: 19.8 lbs
18k: 20.9 lbs
24k: 27.6 lbs

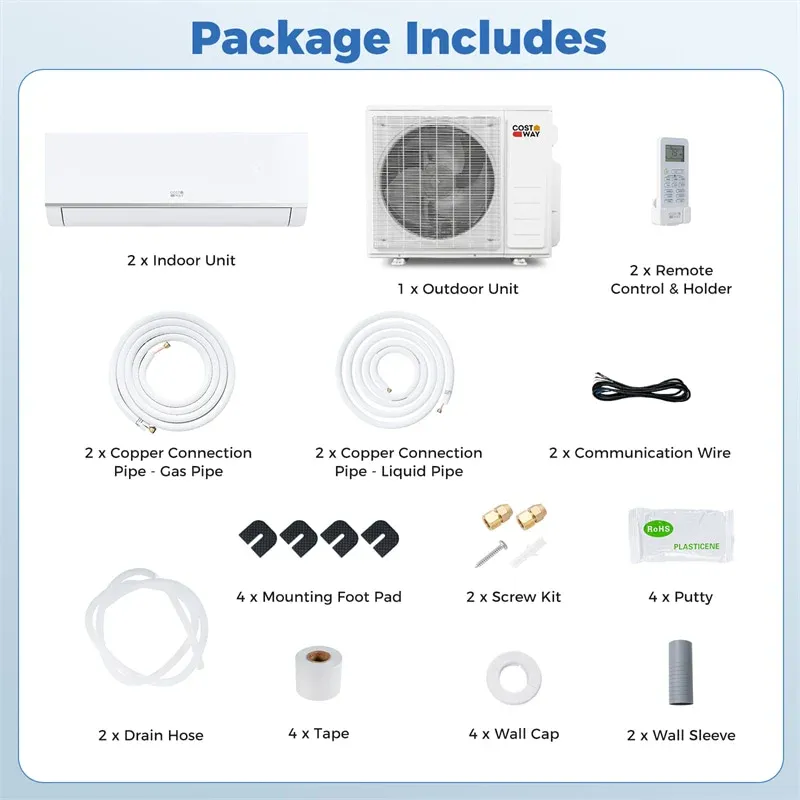

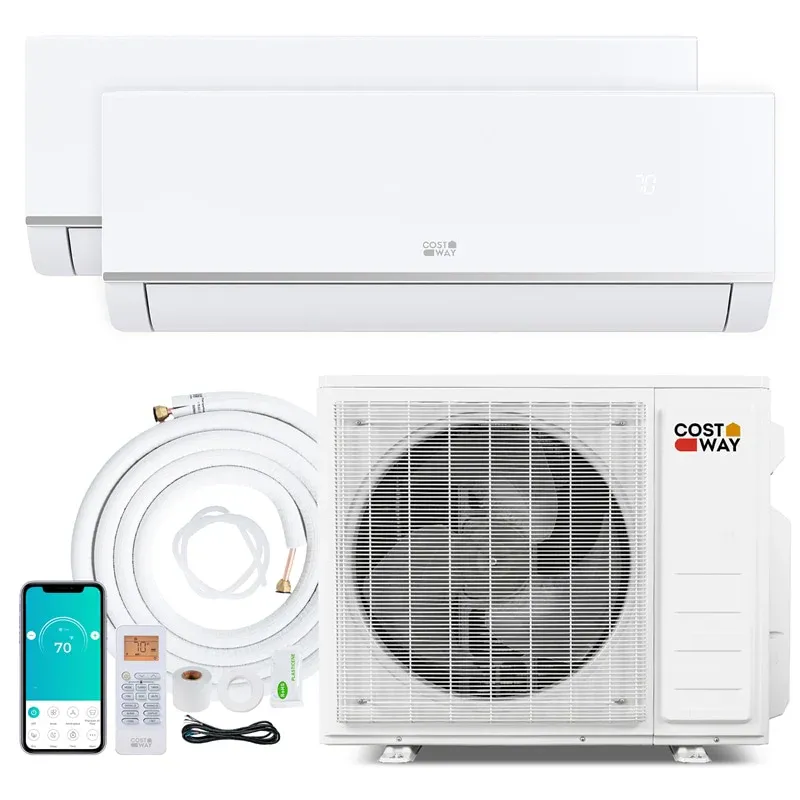

Package Includes
- 1 x Outdoor Unit
- 2 x Indoor Unit
- 2 x Copper Connection Pipe – Gas Pipe
- 2 x Copper Connection Pipe – Liquid Pipe
- 2 x Communication Wire
- 2 x Drain Hose
- 2 x Remote Control & Holder
- 2 x Wall Sleeve
- 4 x Wall Cap
- 4 x Tape
- 4 x Putty
- 2 x Screw Kit
- 4 x Mounting Foot Pad
- 4 x User Guide
