Description

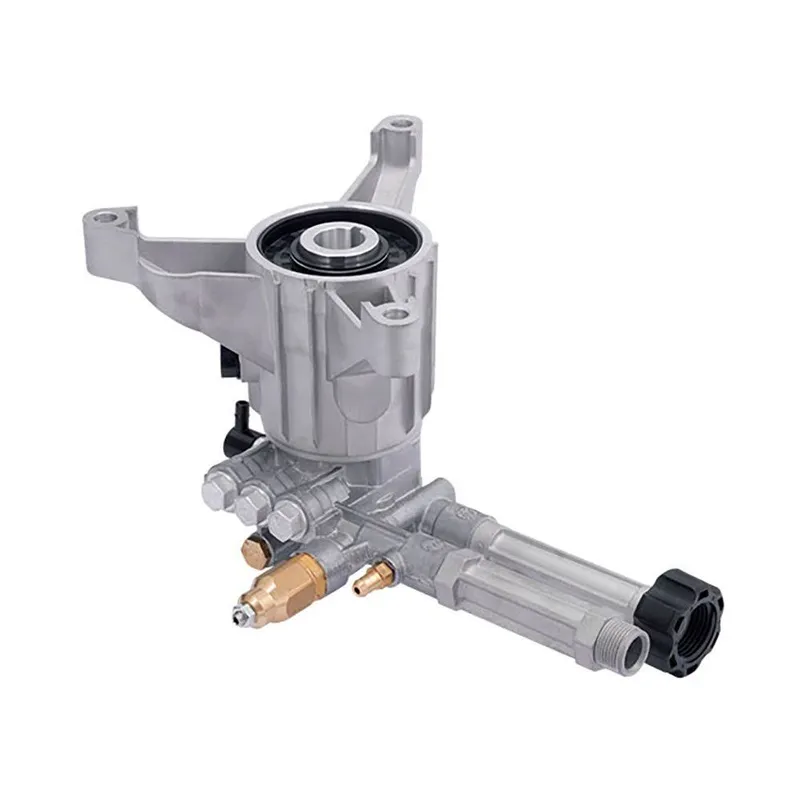

AR does label their RMW pumps but they do not mark on that label whether it is the EZ or the EZ-SX pump. There are two ways to tell which pump you have. The first way is to look at the direction your inlet and outlet tube face in relation to where the spark plug is located. If the tubes go out the same side as the spark plug then you have the EZ version. If your inlet and outlet tube come out opposite the spark plug then get the EZ-SX version of the pump. The second way to tell which version you have is lay the three legs of the pump flat on a table with the inlet and outlet tube facing you. Look at the legs of the pump and take note of the leg that has large hole in it. If that leg is positioned at 2 o’clock then you have the EZ version. If it is at 7 o’clock then you have the EZ-SX version. ***Note: While there are cheaper replacement vertical pumps out there not all pumps are the same.
- 2.2 Gallons Per Minute and 2400 psi at 3400 RPMs
- Fits 4hp to 7hp Vertical Shaft Gas Motors
- 3/4″ Garden Hose Inlet Fitting, 22mm Outlet Fitting
