Description
t?? Top Reasons to Choose Professional OBD2 Scanner Ancel X6

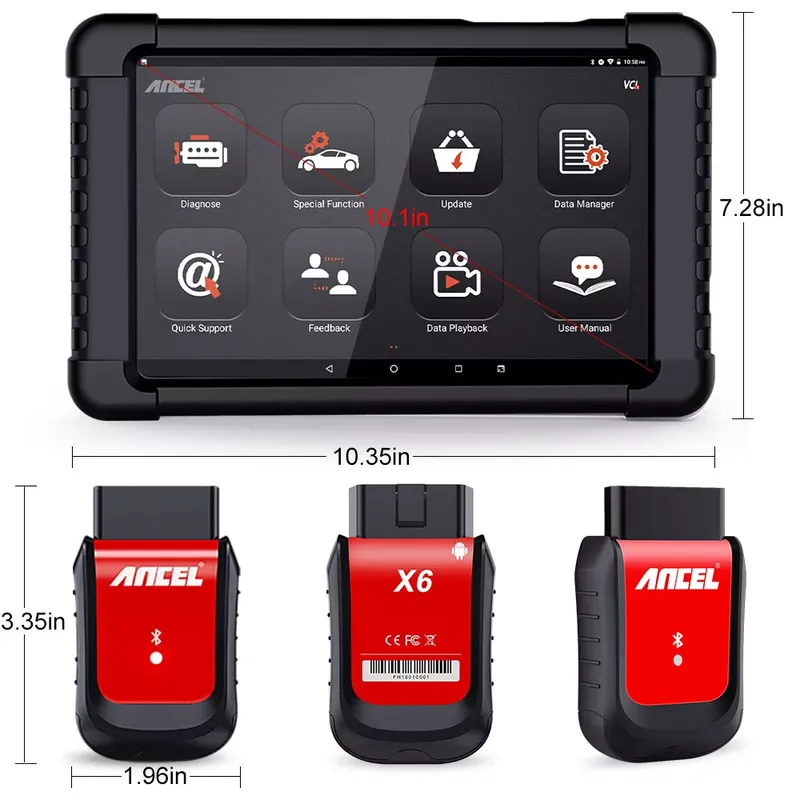

1.Android System version,10.1-inch LCD Touch Screen
2.Support Full System Diagnostic,Support 10 Special Function
3.Long-time Working,Tpye-C Charging Port
4.Bluetooth-compatible Scanner
5.2 YEAR Free Upgrade via WIFI
t6.Support Language:English, French, Spanish, German, Russian, Korean, Japanese, Portuguese, Italian, Polish, Dutch
t
-

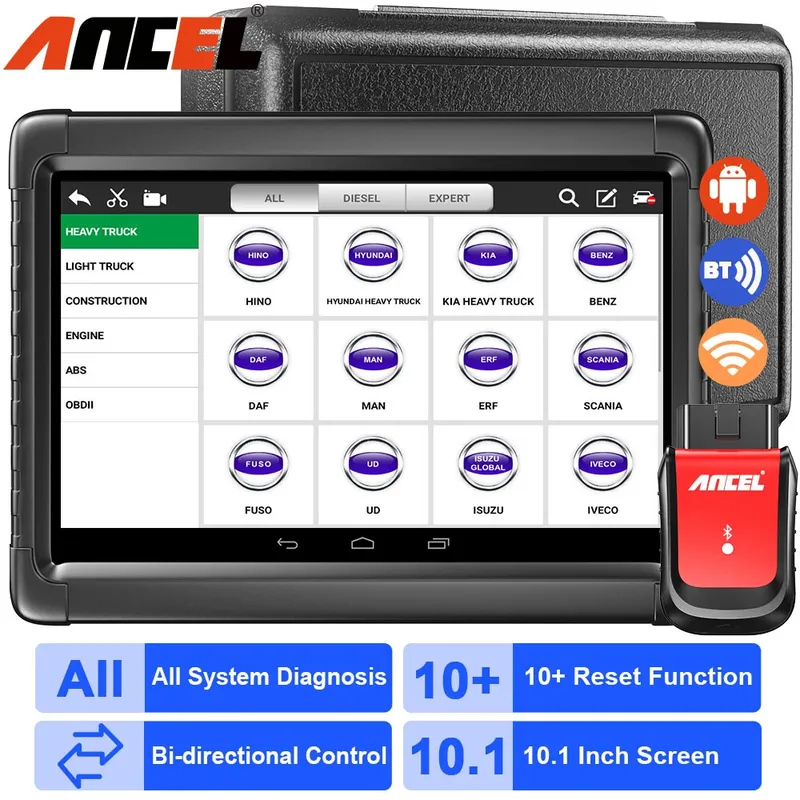

?ANCEL X6 OBD2 Scanner Full System Scan
Ancel X6 Automotive Scanner support all system diagnostic, In-depth medical examination for your car, It mainly including Drive System, Chassis System, Body System, Electrical system .
1.PCM(Drive System): Engine, Transmission, Transfer case, Electrical Machine Electronics, Fuel Pump, Gear, and more…
2. Chassis System: Accumulator Management Electronics, Steering, Integrated Chassis Management, Tyre Pressure Control, Active Cruise Control, Braking System, Suspension, TPMS and more…
3.BCM(Body System): SRS Airbag, Camera, Audio Radio, Gateway, Cluster Dashboard, Rain Sensors, Charging Interface Module, Parking Assistance, Power Control Unit, Touch box, Light, Battery Charging System, Head up Display, Wipe Control System, Roof, Seat & Door Motor system, Immobilizer, ABS ESP system, Air Condition.Electric Windows, Telephone, and more…
4.Electrical System: Including Centralized control system for engine and power transmission, Chassis integrated control and safety system,Intelligent body electronic system,Communication and information / entertainment system
And Many More….
-
?? ANCEL X6 Auto Scanner 10 Kinds of Special Function
1.Oil Reset Service:
After the maintenance completed, the maintenance lamp will go out and the system will apply a new maintenance cycle at the same.
2.EPB Service:
When the brake pad is used to a certain thickness, the brake pad sensing line will be worn, at this time the brake pad sensing line will send a signal to the on-board computer, which indicates to replace the brake pad. After replace the brake pad, the brake pad reset is required, otherwise the car will continuously alarm.
3.ABS Bleeding:
When the ABS contains air, the ABS bleeding function is required to bleed the brake system, thereby recovering the brake sensitivity of the ABS.
4.BMS Service:
The battery matching is to reset the monitoring unit for the car battery via the auto diagnostic device,to clear the original fault information about the battery power shortage, to re-match it, and then to monitor the monitoring unit via taking the existing battery-related info as the standard.
5.TPMS Service:
When the tire pressure MIL is on, after which is repaired, it is necessary to reset the tire pressure and turn off the tire pressure MIL by the tire pressure reset function.
6.DPF Service:
The DPF regeneration function is mainly to remove the particulate matter in the trap via periodically using the combustion oxidation method, so that the performance of the trap is always the optimal stable.
7.IMMO Service:
In order to prevent the illegal use of the car keys, through the anti-theft key matching function, the car can only be started and normally used after the immobilizer control system identified and authorized the remote control keys.
8.SAS Service:
The steering angle reset is to find the relative zero position which can keep the car driving in a straight line, taking this location as a reference, the ecu can calculate the exact angles of left and right turns.
9.Injector Coding:
Writing in the actual coding of the fuel injector or changing the coding stored in the ECU to be the corresponding coding of fuel injector of each cylinder, so as to more accurately control or correct the fuel injection quantity of each cylinder.
10.TPS Throttle Adaptation:
The throttle matching is to initialize the throttle actuator via the automotive decoder, returning the learn value of the ECU to the initial state, so the actuation of the throttle(or idle motor) can be more accurately controlled to adjust the intake volume.
-
?10 OBD2 Basic Functions:
1.Reading Codes:
Present some diagnostic trouble codes after scanning the vehicle.
2.Erasing Codes:
Clear the fault codes after doing the repair according to the prompt of the scanner.
3.Live Data Stream:
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
4.I/M Readiness:
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5.Freeze Frame:
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
6.On-Board Monitor Test:
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7.O2 Sensor Test:
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle��s on-board computer.
8.EVAP Monitor Test:
Retrieves and displays test results for emission-related powertrain components and systems.
9.Read Vehicle Information:
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10.DTC Lookup:
Supports fault code inquiry function��and review the recorded fault codes,helps you quickly find and understand code definitions.
