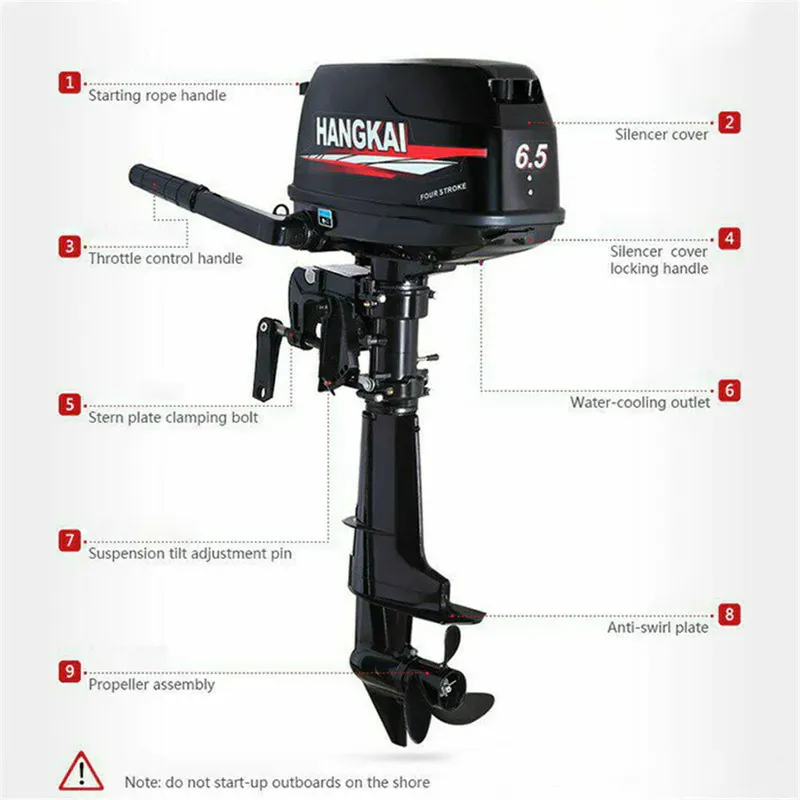

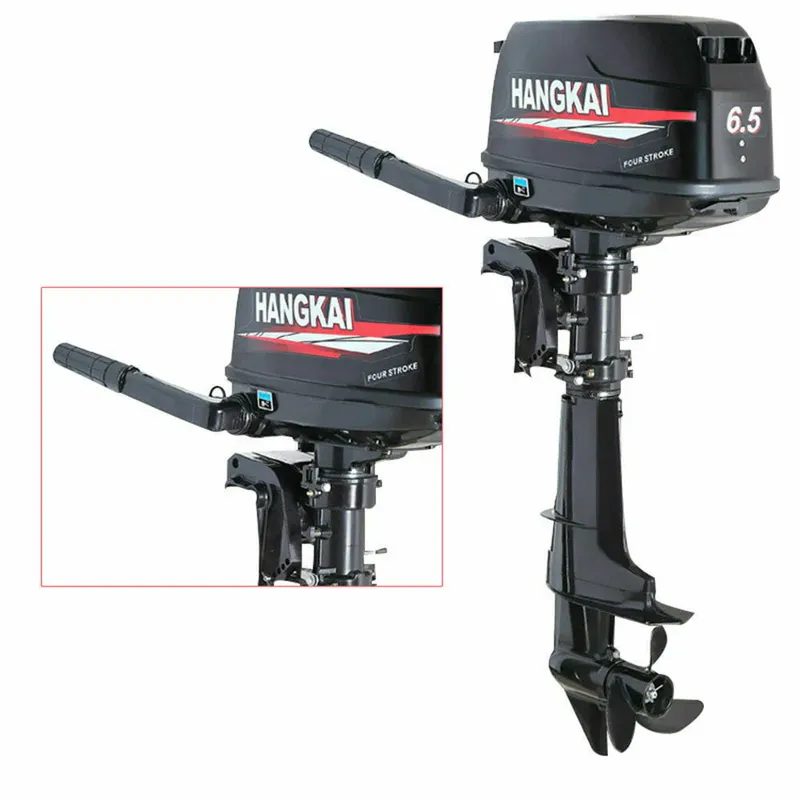

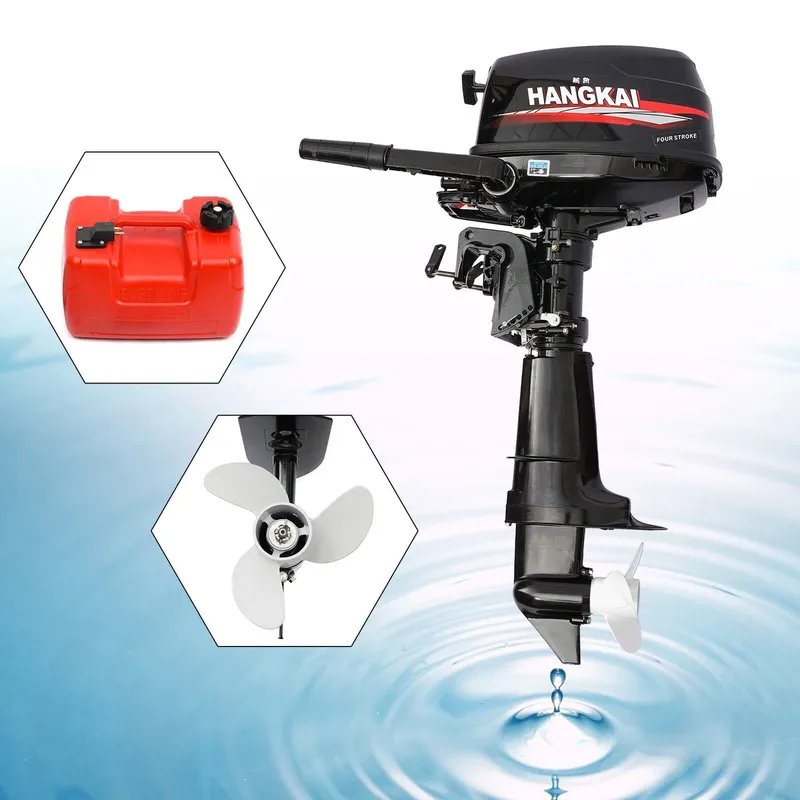

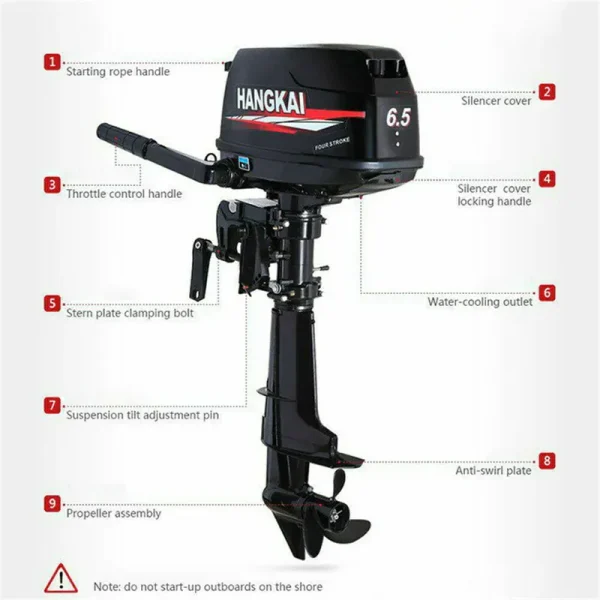

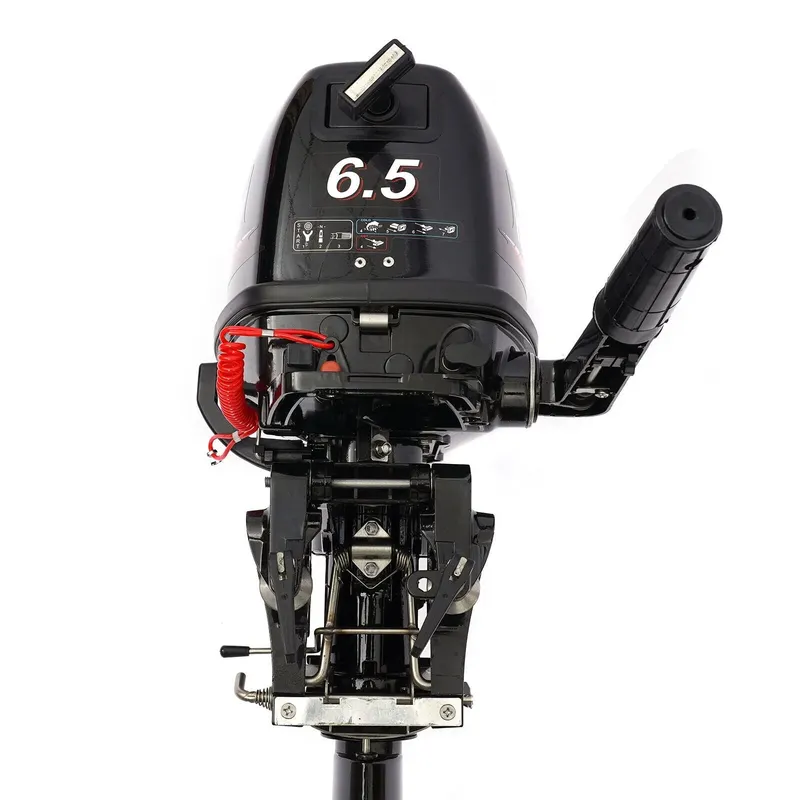

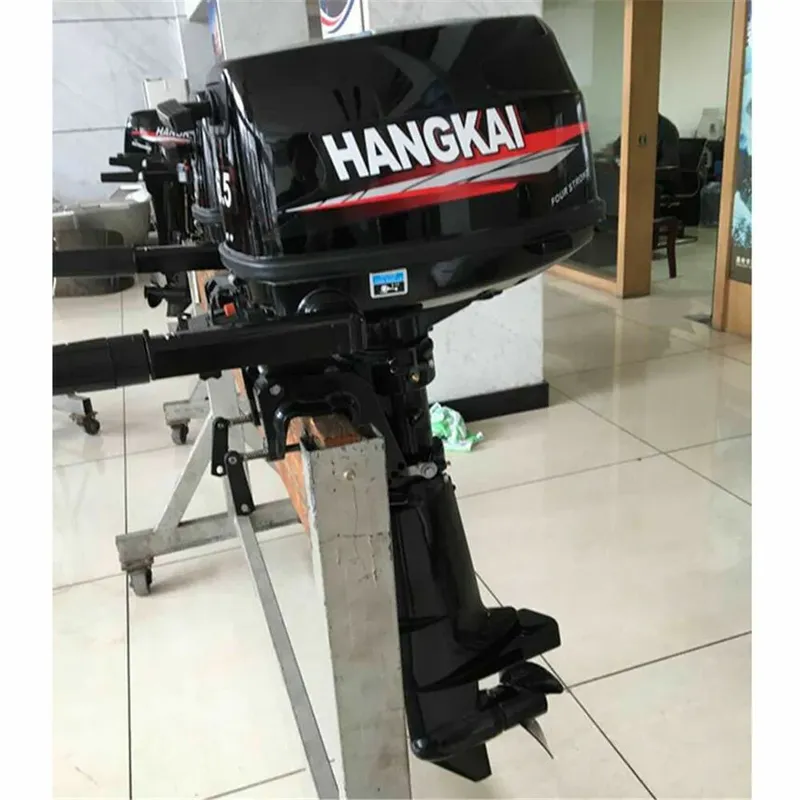

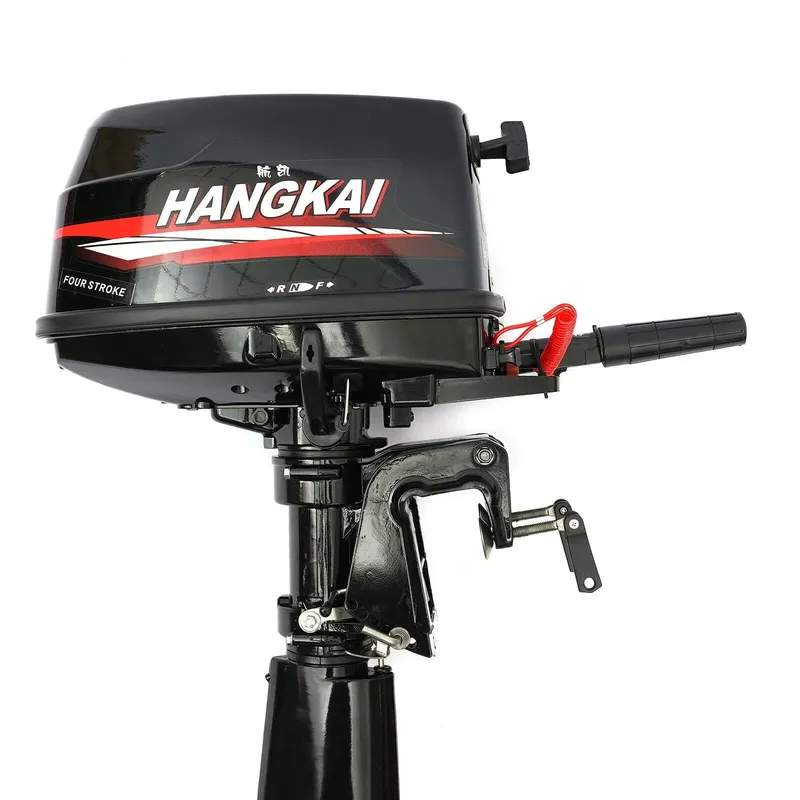

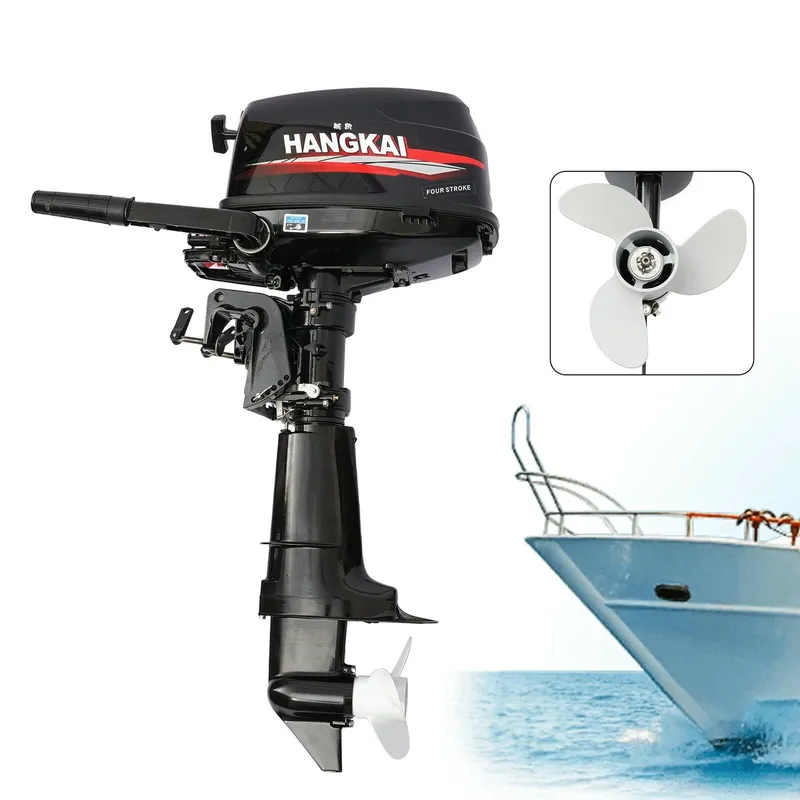

4Stroke 6.5HP Outboard Motor Marine Boat Engine Water Cooling CDI System HANGKAI
Description
Ignition System: CDI
4-Stroke 6.5HP
The Hangkai 6.5HP 4-Stroke provides all the power you need for motoring in a small craft. This engine does that as well as providing fuel efficiency second to none and a newly redesigned carrying handle and holding grip make it convenient to transport!
Using 4 stroke 6.5HP power,Water-cooling technology to improve the reliability of the whole machine. Superior engineWater-cooling system for improved engine performance.
Short Shaft:40cm
Displacement:123CC
Gear ratio:2.08(27:13)
Cylinder:1
Max.Output(kw):4.8
Max.speed(r/min):5000-6000
Gear Positions:F-N-R
Packing size:114x64x41cm
Ignition SystemCDI
Cooling System:Water-cooling
Control SystemTiller control
Starting System:Manual start
Control System:#93 gasoline
Bore x Stroke(mm):59×45
Recommended Lubricant:Four Stroke Lubricating oil
Trim and tilt system:Manual Tilt
NOTE:
Cylinder Scoring is a serious damage,which caused by improper use and will cost you a lot of money to repair the motor.
Don’t do the following will avoid cylinder Scoring:
1,start the motor on bank
2, use the motor when it stop coming out of water
Even if you want test the motor, it should be done in the river!
When there is no water coming out from the motor,please stop using it immediately,then check the impeller of Water pump or check if the water outlet has been blocked.
Notice:Please add gear oil to the gears before use the motor and replace gear oil after the run-in period(10 hours).(if you do not know how to handle this,please contact us) .our outboard motor doesn’t with oil of gear,please prepair it by yourself .Keep in mind that you must add oil on the gear beofore use !!!
Pay Attention
1.About the noise: all the gasoline machines are noisy, currently we did not test the decibel, but the noise is the same as the motorcycle, so it is a normal phenomenon.
2.The machine itself is lightweight, it can use on boat weight of 100kg or less, load-bearing 4 people, but the speed is certainly not the same whenone person on it or 4 people on it . Customer who has high expectations on speed, please be noticed.
3.It can be marched with inflatable boats, rubber boats or fishing boats.
4.Necessary: you have to prepare a boat-motor stand or Hanging board on your boat.
Description
The Hangkai 6.5hp 4-Stroke provides all the power you need for motoring in a small craft. This engine does that as well as providing fuel efficiency second to none and a newly redesigned carrying handle and holding grip make it convenient to transport! With all of this available at a competitive price, it is no wonder this little outboard receives so much attention and praise!
Specification
Short Shaft:40cm
Brand: HANGKAI
Displacement: 123CC
Gear ratio: 2.08(27:13)
Cylinder: 1
Max.speed(r/min): 5000-6000
Gear Positions: F-N-R
Packing size: 114x64x41cm
Ignition System: CDI
Cooling System:Water-cooling
Control System: Tiller control
Starting System: Manual start
Control System: #93 gasoline
N.W./G.W.(kgs): 26/31.2
Bore x Stroke(mm): 59×45
Recommended Propeller range: 3 -7″x9″
Recommended Lubricant: Four Stroke Lubricating oil
Mixing ratio: Pure gasoline
Trim and tilt system: Manual Tilt
Overall LxWxH(cm): 78.3×34.3×103.9
Standard fueel tank capacity: 12L

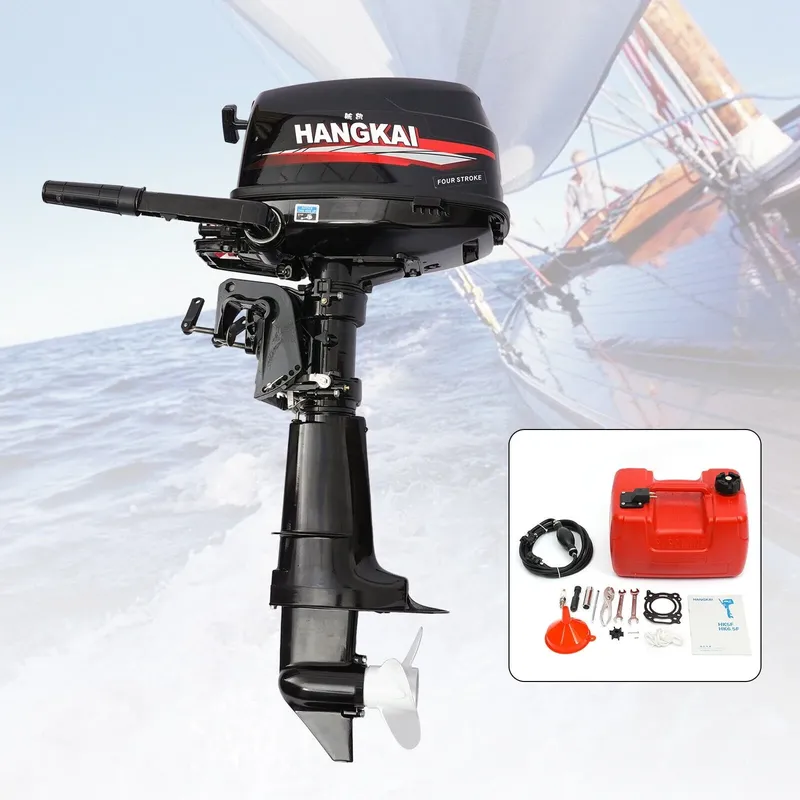

Bonus Accessories:
Brochures, tubing, cotter pins
Pump impeller, start rope, start key

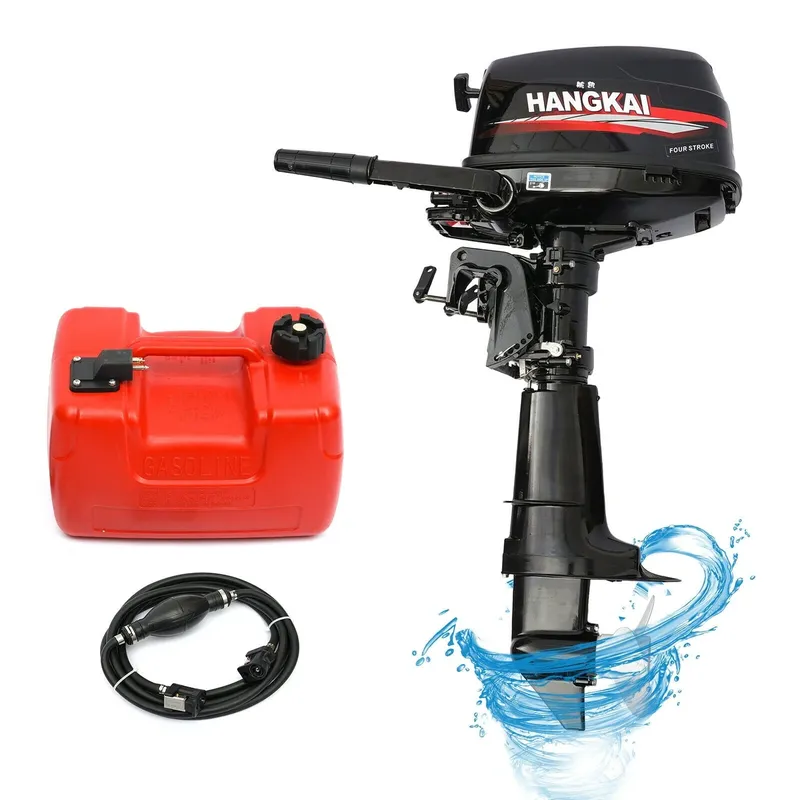

12 liter fuel tank, tool kit, spark plug, cylinder head pad
